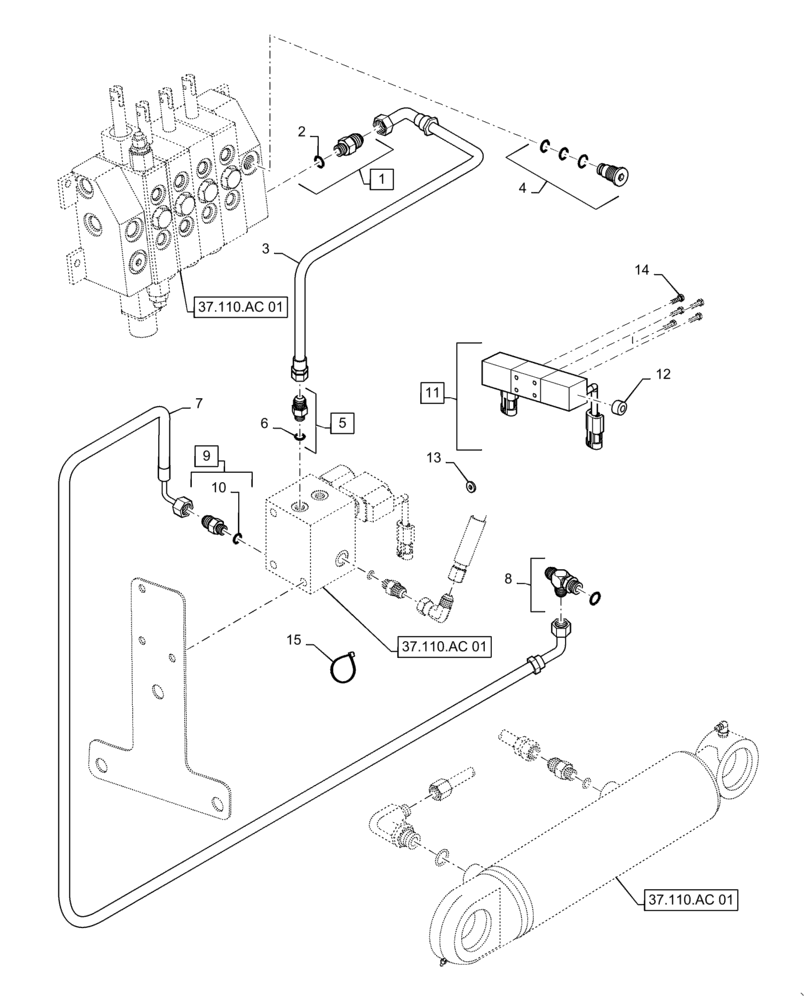

Запчасти Case 570NXT (35.350.AI) - HYDRAULIC VALVE LAZER CONTROL (35) - HYDRAULIC SYSTEMS

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl O-Ring

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

86982086

HOSE ASSY.

675 mm Hitch Valve Outlet

1шт.

4

86981936

PLUG

Power Beyond Incl (2) O-Rings and (1) Backup Ring

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl O-Ring

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

87613818

HOSE ASSY.

584 mm Lock Valve To Lift Cylinder Rod End

1шт.

8

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Incl O-Ring

1шт.

9

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl O-Ring

1шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

411931A1

SOLENOID VALVE

Laser Control Valve Incl 12

1шт.

12

429979A1

COIL

Solenoid

1шт.

13

86982087

PLUG

Orifice

1шт.

14

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

4шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

1шт.
