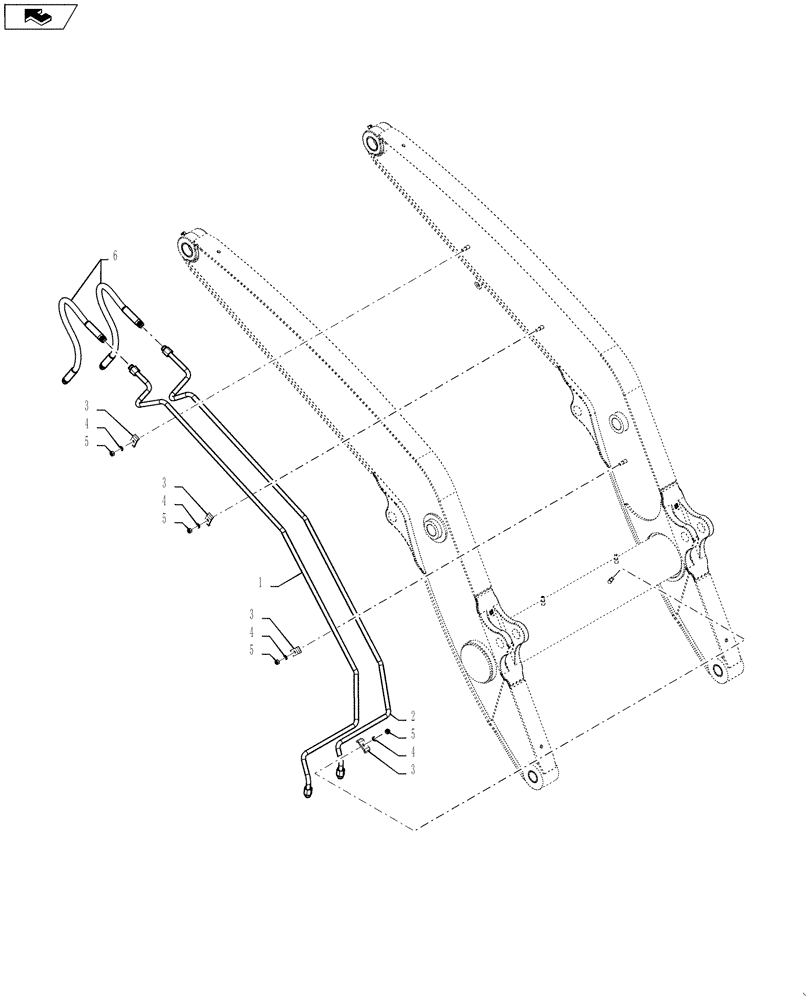

Запчасти Case 570NXT (35.220.AD) - FRONT LOADER AUXILIARY LINES (35) - HYDRAULIC SYSTEMS

1

87716488

HYD TUBE

Loader Arm Auxilary Port B

1шт.

2

87716486

HYD TUBE

Loader Arm Auxilary Port A

1шт.

3

D138055

CLAMP

Tube

4шт.

4

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

5

86500689

NUT,M10 x 1.5, Cl 10

4шт.

6

138467A1

HOSE,12.7mm ID x 680mm L

Loader Arm Upright

2шт.
