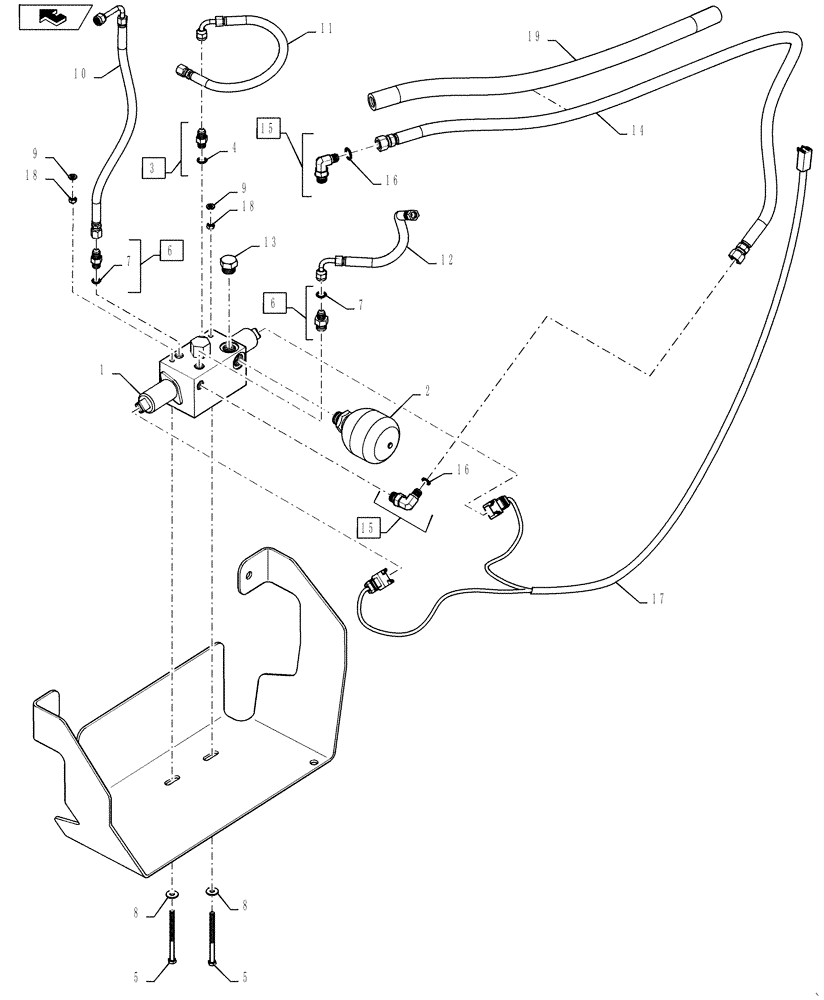

Запчасти Case 570NXT (35.220.AA) - 3 SPOOL ELECTRIC HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

87566480

VALVE

Proportional Control, 4x1 or 6x1 Clam Bucket

1шт.

2

87425225

ACCUMULATOR,0.16L

To Valve

1шт.

3

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl O-Ring

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

814-6090

BOLT,Hex, M6 x 1 x 90mm, Cl 8.8

2шт.

6

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl O-Ring

2шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

8

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

9

892-11006

LOCK WASHER,M6

2шт.

10

87662930

HYDRAULIC HOSE,6.3mm ID x 534mm L

Valve To K Port

1шт.

11

87662928

HYDRAULIC HOSE,6.3mm ID x 387mm L

Valve To I Port

1шт.

12

87662932

HYDRAULIC HOSE,6.3mm ID x 525mm L, SAE 100R16

Valve To Loader Press

1шт.

13

218-5156

PLUG,Hex Hd, 3/4"-16 ORB

1шт.

14

87650602

HYDRAULIC HOSE

Valve To Tank

1шт.

15

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl O-Ring

2шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

87651975

WIRE HARNESS

Component Parts NSS

1шт.

18

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

19

87452021

PROTECTIVE SLEEVE,19mm ID x 650mm L

Hose

1шт.
