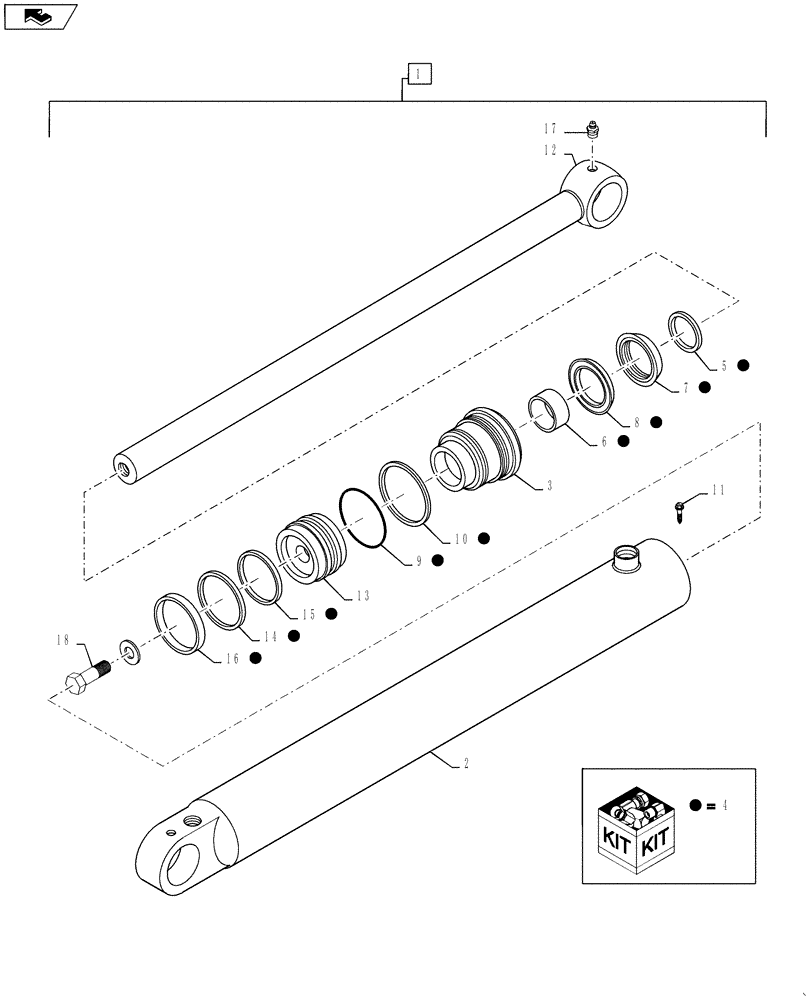

Запчасти Case 570NXT (35.162.AB) - CYLINDER LOADER LIFT (35) - HYDRAULIC SYSTEMS

1

384240A1

LIFT CYLINDER,Double Acting, 44.4mm Rod, 766mm Stroke

82.6 ID x 766 mm strk; Loader; Incl 2 - 18

1шт.

1

384240A1R

REMAN-HYD CYLINDER

Lift Cylinder

1шт.

1

384240A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Tube 82.6 mm ID 963.7 mm Length

1шт.

3

1980321C3

GLAND

Packing

1шт.

4

1543260C1

SEAL KIT

Incl 5 - 10, 14 - 16

1шт.

5

NSS

NOT SOLD SEPARAT

Wiper Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Bushing

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL Rod

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL Buffer

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Ring

1шт.

11

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

12

133083A1

PISTON ROD

44 mm (1-3/4 in) dia

1шт.

13

135161A1

PISTON,82.07mm Bore, 44.5mm Rod, 50.65mm W

Cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Ring

1шт.

16

NSS

NOT SOLD SEPARAT

Ring

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

18

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1 x 2.5 in; Includes Washer

1шт.
