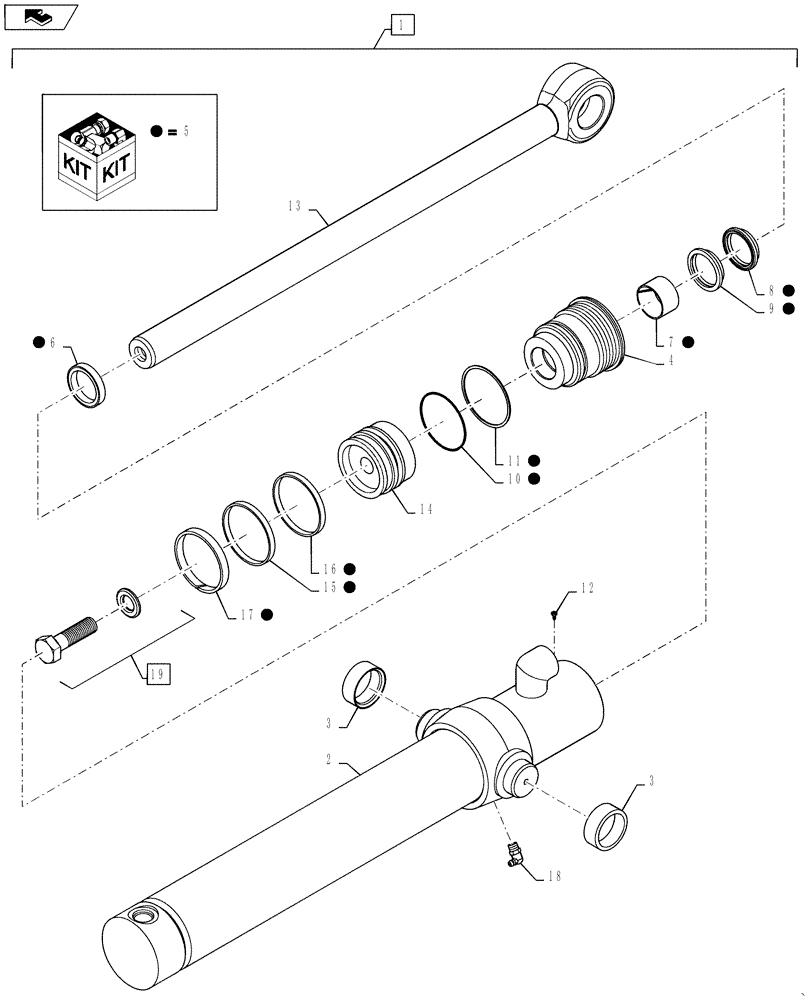

Запчасти Case 570NXT (35.162.AB[01]) - CYLINDER LOADER BUCKET TILT (35) - HYDRAULIC SYSTEMS

1

87609669

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke

Power Tan Loader Bucket Dump; Incl 2 - 19

2шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

G108512

BUSHING,41.2mm ID x 50mm OD x 18.7mm L

External

2шт.

4

297280A1

GLAND

Packing

1шт.

5

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Incl 6 - 11, 15 - 17

1шт.

6

NSS

NOT SOLD SEPARAT

Wiper Seal

1шт.

7

NSS

NOT SOLD SEPARAT

Bushing

1шт.

8

NSS

NOT SOLD SEPARAT

Rod Seal

1шт.

9

NSS

NOT SOLD SEPARAT

Buffer Seal

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Ring

1шт.

12

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

No. 8 x 3/8, self-tapping

1шт.

13

87609666

PISTON ROD

Rod, Piston; 38 mm (1-1/2 in) dia

1шт.

14

G108518

PISTON

Cylinder

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Seal

1шт.

17

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

19

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

3/4 x 2,5 in, Includes Washer

1шт.
