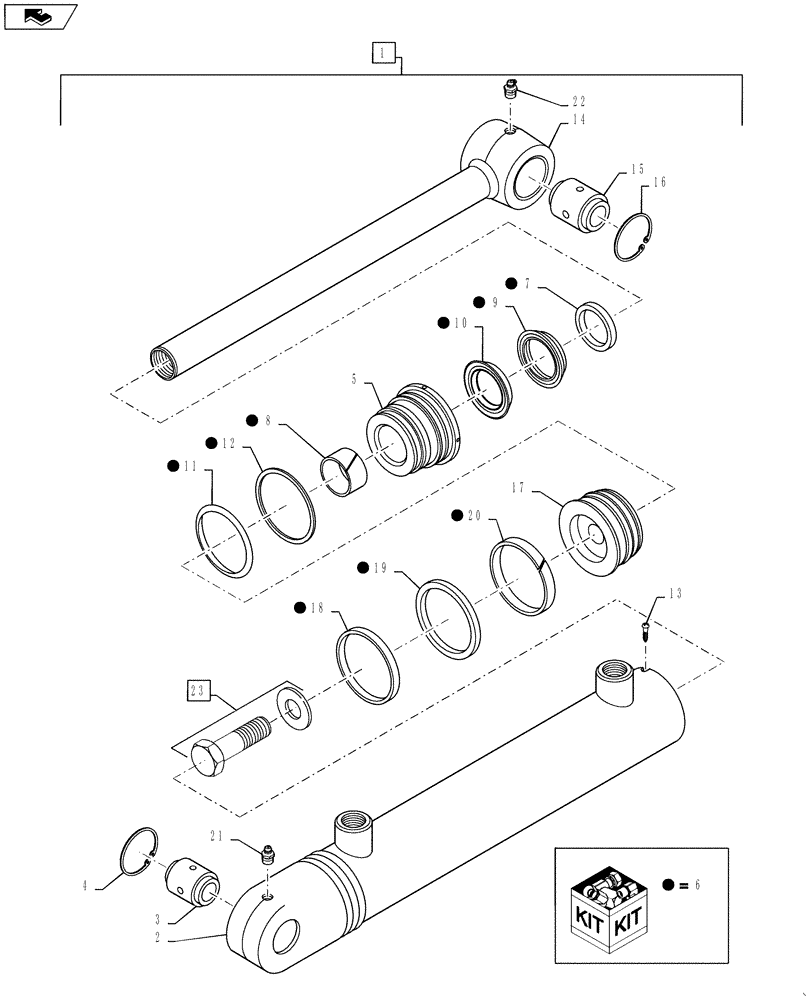

Запчасти Case 570NXT (35.116.AH) - CYLINDER LIFT THREE POINT HITCH (35) - HYDRAULIC SYSTEMS

1

86982542

LIFT CYLINDER,Double Acting, 38.1mm Rod, 207.2mm Stroke

Three-Point Hitch Lift, 76 ID x 207 mm strk, Incl 2- 23

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel Incl in 1

1шт.

3

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

1шт.

4

86625147

SNAP RING,2", Int, #200

2шт.

5

297280A1

GLAND

Packing

1шт.

6

86982373

SEAL KIT

Incl 7 - 12, 18 - 20

1шт.

7

NSS

NOT SOLD SEPARAT

Seal Incl in 6

1шт.

8

NSS

NOT SOLD SEPARAT

Bushing Incl in 6

1шт.

9

NSS

NOT SOLD SEPARAT

Rod Seal Incl in 6

1шт.

10

NSS

NOT SOLD SEPARAT

Buffer Seal Incl in 6

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring Incl in 6

1шт.

12

NSS

NOT SOLD SEPARAT

Ring

1шт.

13

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

14

296720A1

PISTON ROD

38 mm (1-1/2 in), Incl 15,16

1шт.

15

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

1шт.

16

86625147

SNAP RING,2", Int, #200

2шт.

17

296723A1

JACK PISTON

Cylinder

1шт.

18

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

Piston

1шт.

19

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

Ring

1шт.

20

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

Piston

1шт.

21

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

22

80719

LUBE NIPPLE,1/8" NPT

1шт.

23

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

1 x 2.5; Incl. Washer

1шт.
