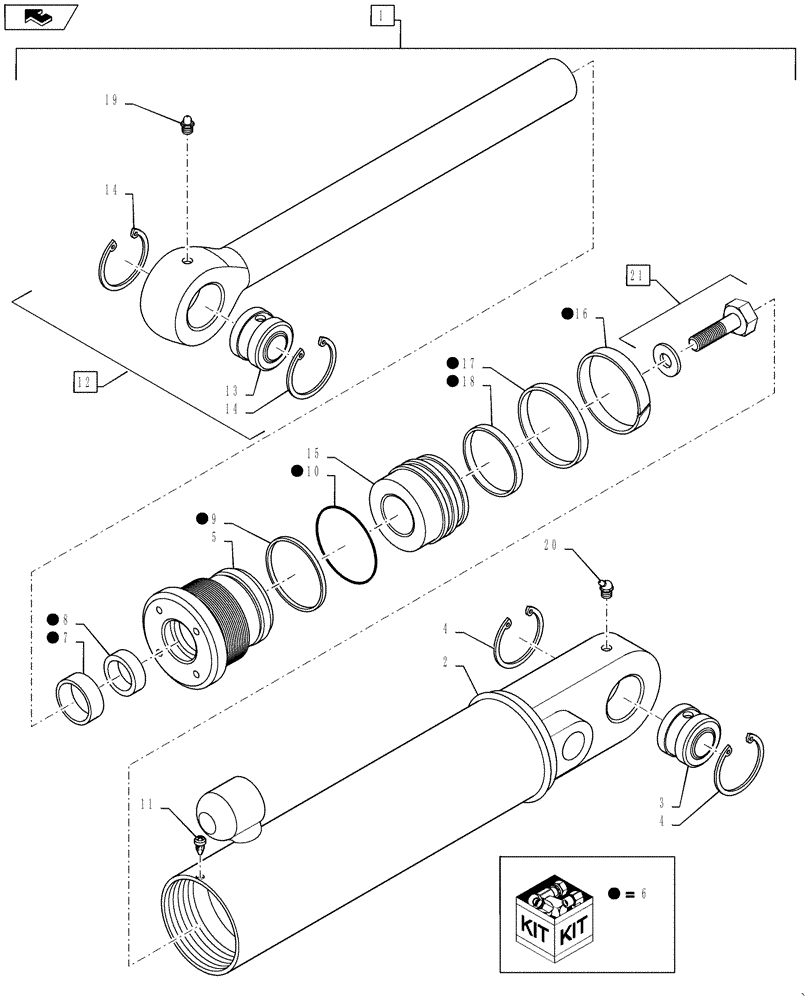

Запчасти Case 570NXT (35.116.AH[02]) - HYDRAULIC CYLINDER PITCH 3 POINT HITCH 5 SPOOL (35) - HYDRAULIC SYSTEMS

1

84214699

CYLINDER,Double Acting, 31.8mm Rod, 178mm Stroke

Thre Point Hitch Pitch, Incl 2 - 21

1шт.

2

84214713

CYLINDER,63.42mm Bore Dia

Incl 3 - 4

1шт.

3

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

Bushing

1шт.

4

81821513

SNAP RING,1 5/8" OD x 0.065" Thk

Retaining

2шт.

5

118115A2

GLAND

Packing

1шт.

6

86982374

SEAL KIT

Inc 7 - 10, 1 6- 18

1шт.

7

NSS

NOT SOLD SEPARAT

Wiper Seal Incl in 6

1шт.

8

NSS

NOT SOLD SEPARAT

Seal Incl in 6

1шт.

9

NSS

NOT SOLD SEPARAT

Back Up Ring Incl in 6

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring Incl in 6

1шт.

11

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

12

138847A1

PISTON ROD

Incl 13 - 14

1шт.

13

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

Bushing

1шт.

14

81821513

SNAP RING,1 5/8" OD x 0.065" Thk

Snap

2шт.

15

137528A1

PISTON

Cylinder

1шт.

16

NSS

NOT SOLD SEPARAT

Ring Incl in 6

1шт.

17

NSS

NOT SOLD SEPARAT

Seal Incl in 6

1шт.

18

NSS

NOT SOLD SEPARAT

Seal Incl in 6

1шт.

19

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

20

80719

LUBE NIPPLE,1/8" NPT

1шт.

21

86982434

SPECIAL BOLT,3/4" - 16 x 2"

3/4 x 2.0; Incl Washer

1шт.
