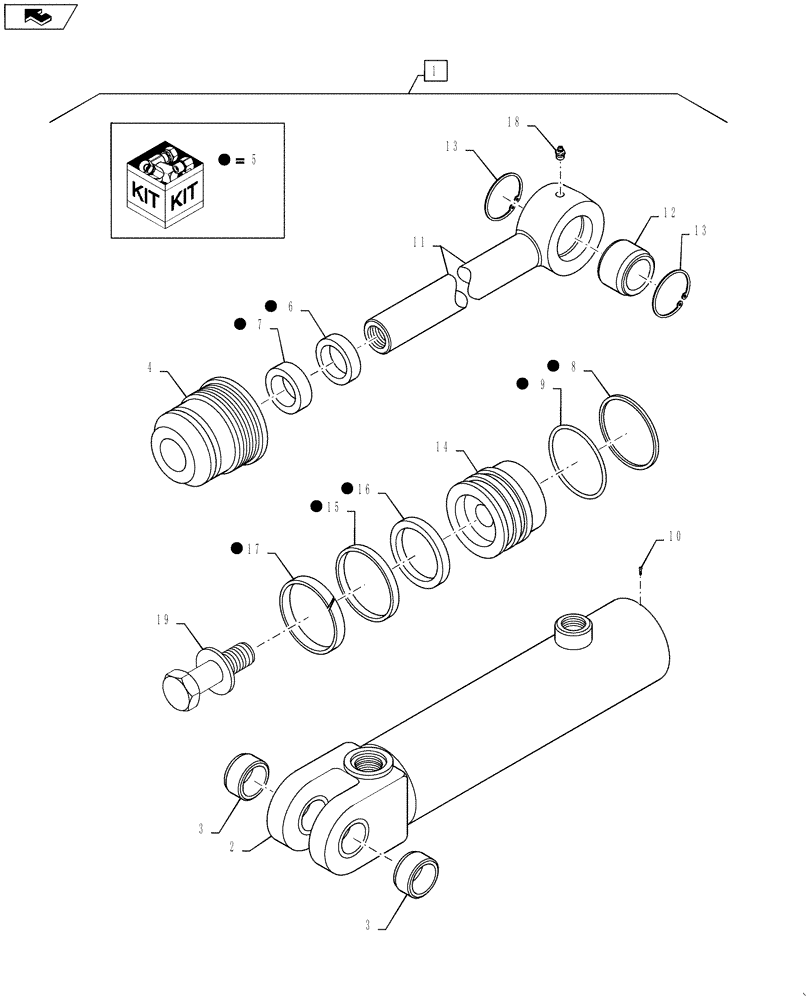

Запчасти Case 570NXT (35.116.AH[01]) - CYLINDER TILT THREE POINT HITCH (35) - HYDRAULIC SYSTEMS

1

86982482

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 160mm Stroke

Three-Point Hitch Tilt, 64 ID x 160 mm strk, Incl. Refs. 2- 20

1шт.

2

NSS

NOT SOLD SEPARAT

Tube 356.5 mm Length Incl in 1

1шт.

3

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

1 Inch I.D

2шт.

4

118115A2

GLAND

Packing

1шт.

5

86982384

SEAL KIT

Incl 6 - 9, 15 - 17

1шт.

6

NSS

NOT SOLD SEPARAT

Wiper Seal Incl in 5

1шт.

7

NSS

NOT SOLD SEPARAT

Seal Incl in 5

1шт.

8

NSS

NOT SOLD SEPARAT

Back Up Ring Incl in 5

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring Incl in 5

1шт.

10

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

11

137917A1

PISTON ROD

32 mm (1-1/4 in) dia, Incl 12,13

1шт.

12

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

Self Aligning

1шт.

13

271429

SNAP RING,1.625", Int, #162

2шт.

14

137528A1

PISTON

Cylinder

1шт.

15

NSS

NOT SOLD SEPARAT

Seal Incl in 5

1шт.

16

NSS

NOT SOLD SEPARAT

Seal Incl in 5

1шт.

17

NSS

NOT SOLD SEPARAT

Ring Incl in 5

1шт.

18

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

19

86982434

SPECIAL BOLT,3/4" - 16 x 2"

3/4 x 2.0; Includes Washer

1шт.
