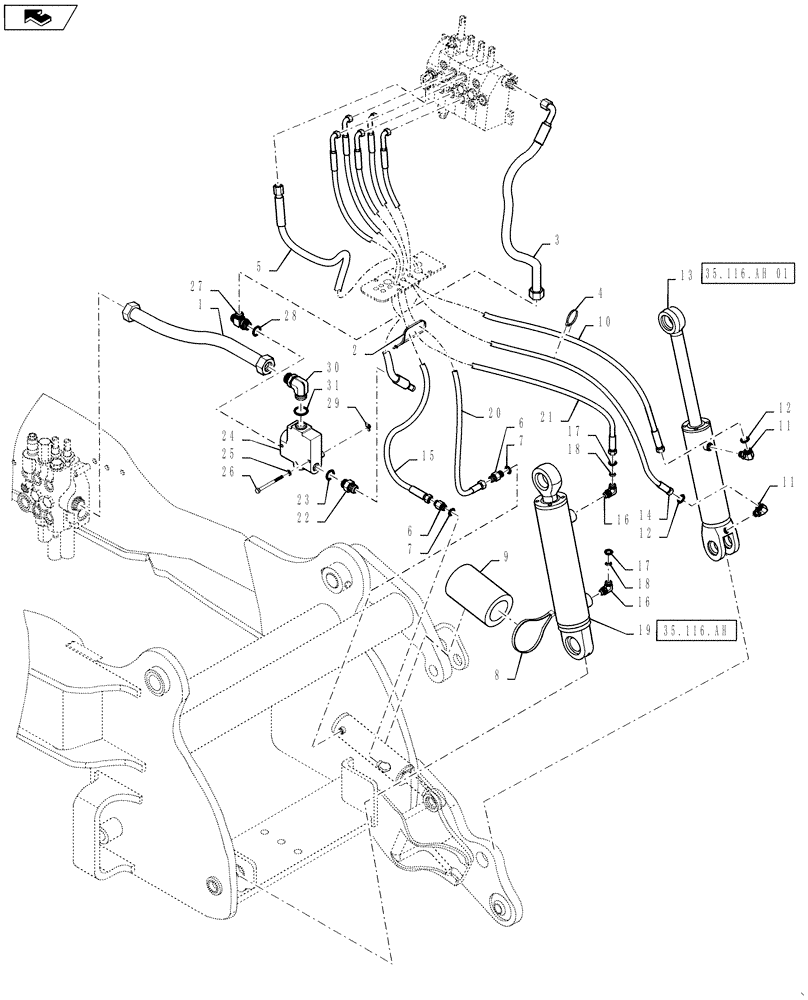

Запчасти Case 570NXT (35.114.AF[01]) - 3 POINT HITCH HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

87310473

HOSE ASSY.,19.05mm ID x 740mm L

Loader Valve To Flow Control Valve

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

15 Inch Nylon

3шт.

3

447179A1

HOSE ASSY.

Outlet Valve To Forward Control Valve

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

7-8 Inch Black Nylon

4шт.

5

86982083

HOSE ASSY.,12.5mm ID x 1100mm L

Flow Control Valve To Hitch Valve

1шт.

6

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

Does Not Incl O-Ring

2шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

305342A1

STRAP,450mm L

Tie

1шт.

9

87682091

FOAM INSULATION

Pipe

1шт.

10

405837A3

HOSE ASSY.,6.35mm ID x 1450mm L

Tilt Rod

1шт.

11

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Does Not Incl O-Ring

2шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

86982482

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 160mm Stroke

Tilt

1шт.

14

405838A3

HOSE ASSY.,6.35mm ID x 1630mm L

Head End

1шт.

15

405839A2

HOSE ASSY.,6.35mm ID x 1225mm L

Pitch Rod End

1шт.

16

86512937

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Does Not Incl O-Ring

2шт.

17

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

86981925

RESTRICTOR

1/8 Inch Orifice

2шт.

19

86982542

LIFT CYLINDER,Double Acting, 38.1mm Rod, 207.2mm Stroke

Three Point Hitch Gray

1шт.

20

410702A1

HOSE ASSY.,6.35mm ID x 975mm L

Pitch Cylinder

1шт.

21

87561383

HOSE ASSY.,6.3mm ID x 1130mm L, SAE 100R17

Lift Cylinder Head End

1шт.

22

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Does Not Incl O-Ring

1шт.

23

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

87571180

CONTROL VALVE

Flow

1шт.

25

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

6.85 X 12.75

8шт.

26

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

2шт.

27

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

Does Not Incl O-Ring

1шт.

28

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

833-40406

NUT,M6, U

Spring

10шт.

30

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Does Not Incl O-Ring

1шт.

31

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
