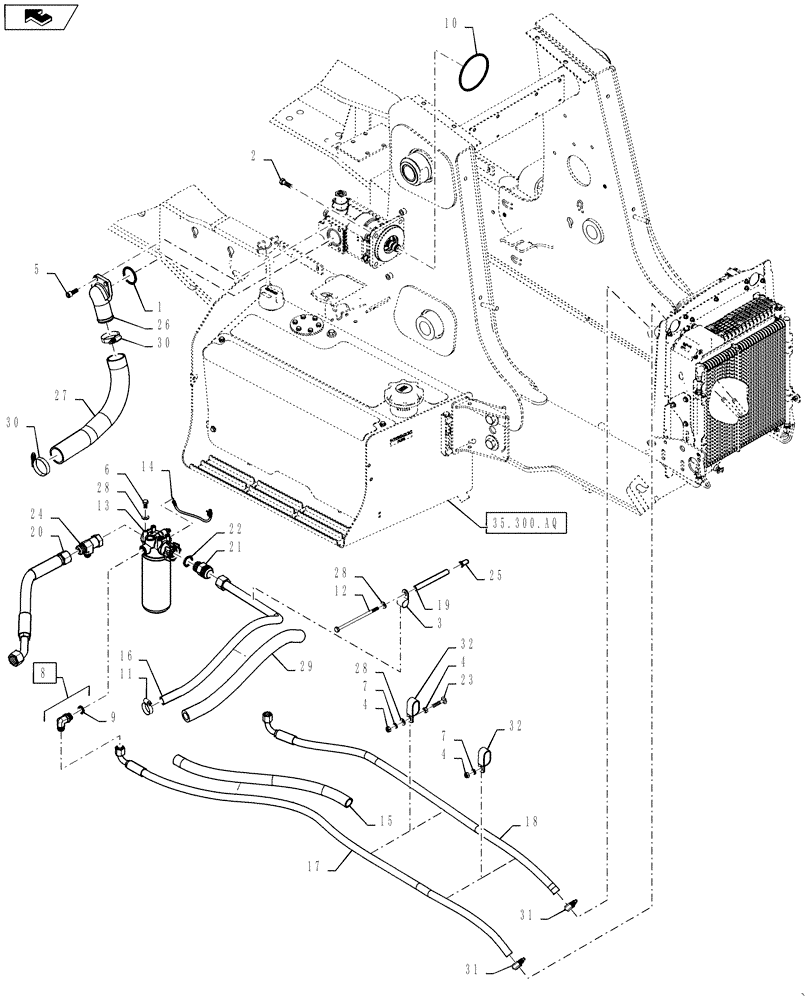

Запчасти Case 570NXT (35.105.AC) - HYDRAULIC SYSTEM LINES AND FITTINGS (35) - HYDRAULIC SYSTEMS

1

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

Pump Inlet

1шт.

2

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

3

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

5

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

3шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

7

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

8

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

O-Ring Not Incl

1шт.

9

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

175156

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

11

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

12

991741

BOLT,Hex, M10 x 180mm, Cl 8.8

M10x180 8.8

1шт.

13

84248499

HYDRAULIC OIL FILTER

With Back Pressure Check

1шт.

14

84292224

WIRE HARNESS

Filter Jumper

1шт.

15

84329867

HOSE PROTECTION,26.87mm ID x 590mm L

1шт.

16

84356647

TUBE

Manifold To Return

1шт.

17

84366995

HYDRAULIC HOSE

Cooler To Supply

1шт.

18

84368558

HYDRAULIC HOSE

Cooler To Return

1шт.

19

84411634

SPACER

M10 X 144

1шт.

20

84483645

HYDRAULIC HOSE,25mm ID x 508mm L, SAE 100R4

Return

1шт.

21

86504080

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

O-Ring Not Incl

1шт.

22

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

23

86512426

CARRIAGE BOLT,Sq Nk, M10 x 50mm, Cl 8.8

1шт.

24

86625274

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

1шт.

25

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

M10

1шт.

26

87592658

FLANGE

Pump Inlet

1шт.

27

87627903

HYDRAULIC HOSE,50.80 mm ID x mm, SAE 30R7

Suction

1шт.

28

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10

6шт.

29

87656501

HOSE PROTECTION,340.00 mm ID x 540.00 mm

Guard

1шт.

30

259044A1

CLAMP

Hose

2шт.

31

328186A1

HOSE CLAMP,400mm L

Constant Torque

2шт.

32

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

Double 1 Inch

2шт.
