(35.105.AC[01]) - HYDRAULIC OIL FILTER, ASSY

Запчасти Case 570NXT (35.105.AC[01]) - HYDRAULIC OIL FILTER, ASSY (35) - HYDRAULIC SYSTEMS

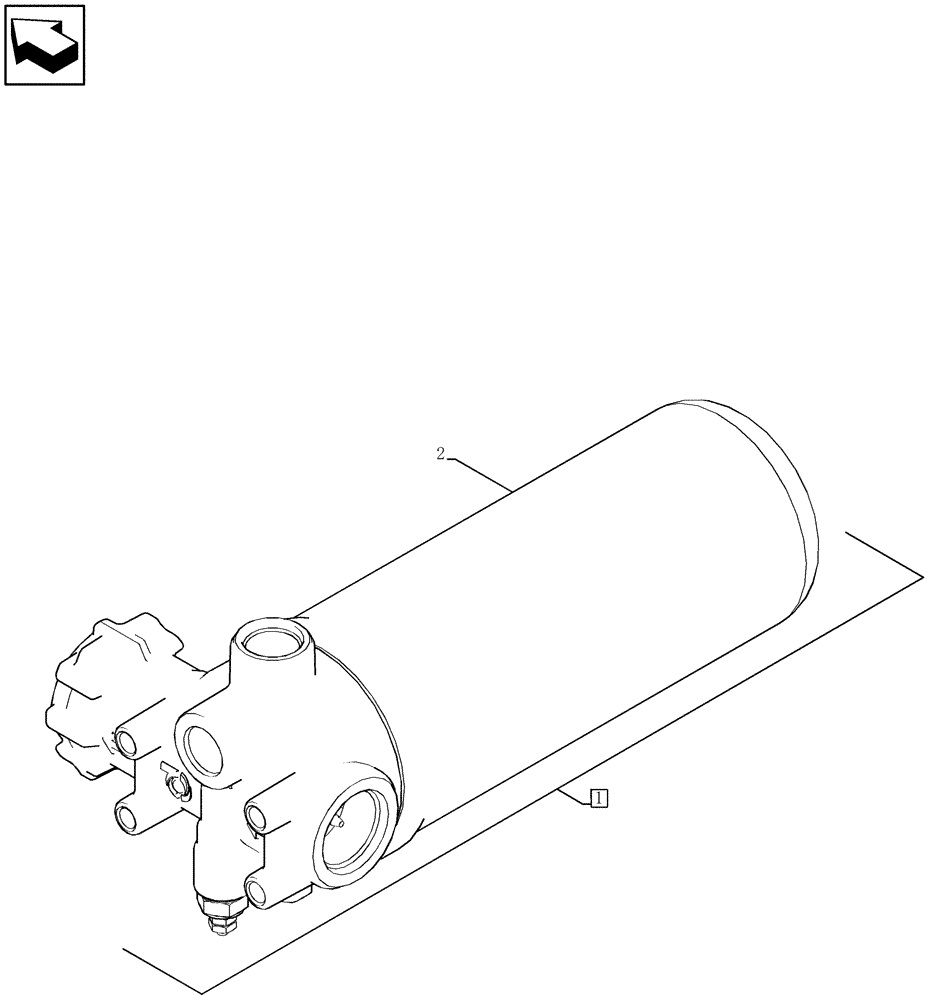

Схема запчастей Case 570NXT - (35.105.AC[01]) - HYDRAULIC OIL FILTER, ASSY (35) - HYDRAULIC SYSTEMS
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84248499

HYDRAULIC OIL FILTER

Hydraulic, bypass

1шт.

2

84255607

HYDRAULIC OIL FILTER,Spin-on, M87 x 2.5, 98.8mm OD x 239.8mm L

Spin-on

1шт.

3

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

(Not Shown)

1шт.
