(35.100.BH) - HYDRAULIC LINES BUCKET DUMP

Запчасти Case 570NXT (35.100.BH) - HYDRAULIC LINES BUCKET DUMP (35) - HYDRAULIC SYSTEMS

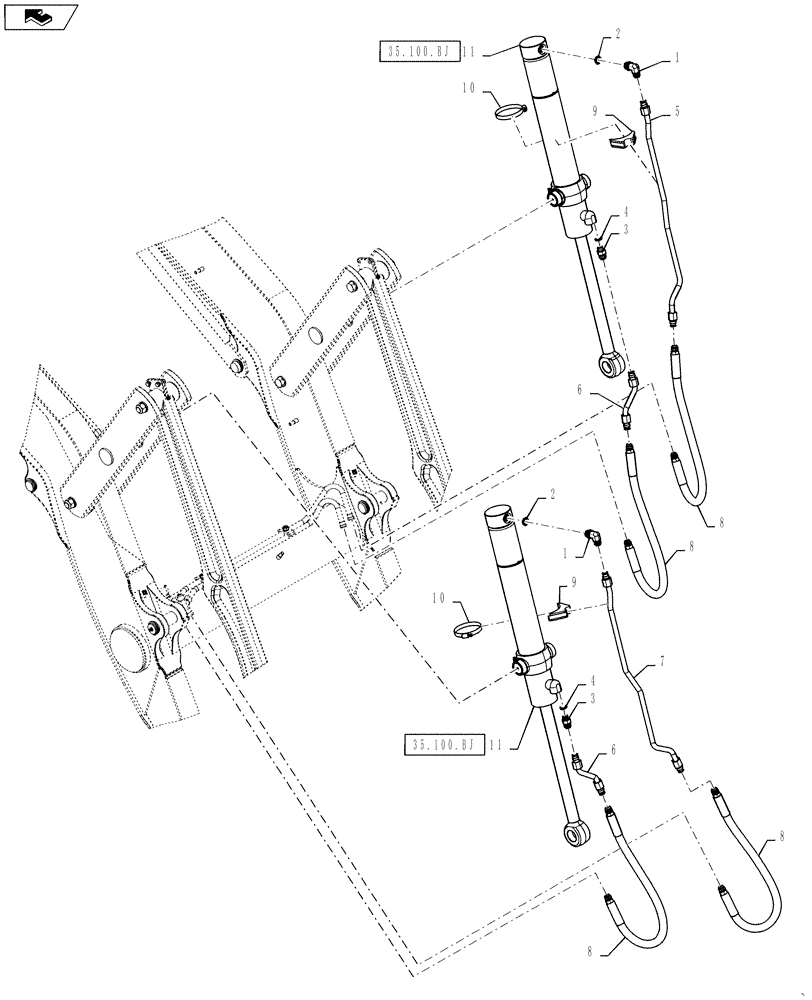

Схема запчастей Case 570NXT - (35.100.BH) - HYDRAULIC LINES BUCKET DUMP (35) - HYDRAULIC SYSTEMS
10
35.100.bj
11
8
35.100.bj
8
1
2
1
8
2
10
8
5
9
3
6
11
home
4
4
6
7
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Does Not Incl O-Ring

2шт.

2

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

Does Not Incl O-Ring

2шт.

4

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

84311925

TUBE

LH Bucket Cylinder

1шт.

6

87316049

RIGID TUBE

Cylinder Rod End

2шт.

7

84311927

TUBE

RH Bucket Cylinder

1шт.

8

371031A1

HYDRAULIC HOSE,3/8" ID x 940mm L

Loader Bucket Cylinder

4шт.

9

L79937

SADDLE

Tube Support

2шт.

10

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

2шт.

11

87624263

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke

CE Gray Dump

2шт.
