(35.100.BG) - HYDRAULIC LINES LOADER LIFT CYLINDER

Запчасти Case 570NXT (35.100.BG) - HYDRAULIC LINES LOADER LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

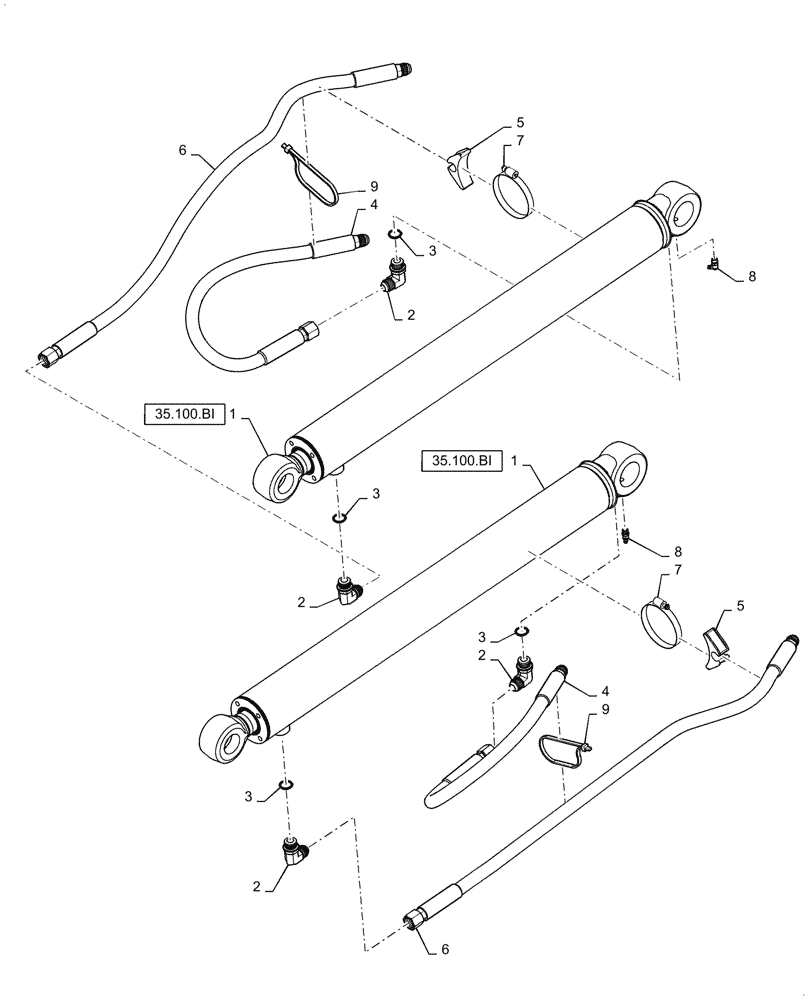

Схема запчастей Case 570NXT - (35.100.BG) - HYDRAULIC LINES LOADER LIFT CYLINDER (35) - HYDRAULIC SYSTEMS
35.100.bi
3
1
3
7
8
4
2
2
9
5
4
2
2
5
1
7
6
8
3
6
3
9
35.100.bi
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87384876

LIFT CYLINDER,Double Acting, 44.4mm Rod, 766mm Stroke

82.6 X 44.4 CE Gray

2шт.

1

87384876R

REMAN-HYD CYLINDER

82.6 X 44.4

2шт.

1

87384876C

CORE-HYD CYLINDER

Return Number

2шт.

2

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Doen Not Incl O-Ring

4шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

378172A1

HOSE ASSY.,9.53mm ID x 720mm L

Lift Cylinder Head End

2шт.

5

D142787

SPACER

Tube Support

2шт.

6

84399340

HOSE ASSY.

Lift Cylinder Rod End

2шт.

7

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

2шт.

8

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

15 Inch Nylon

2шт.
