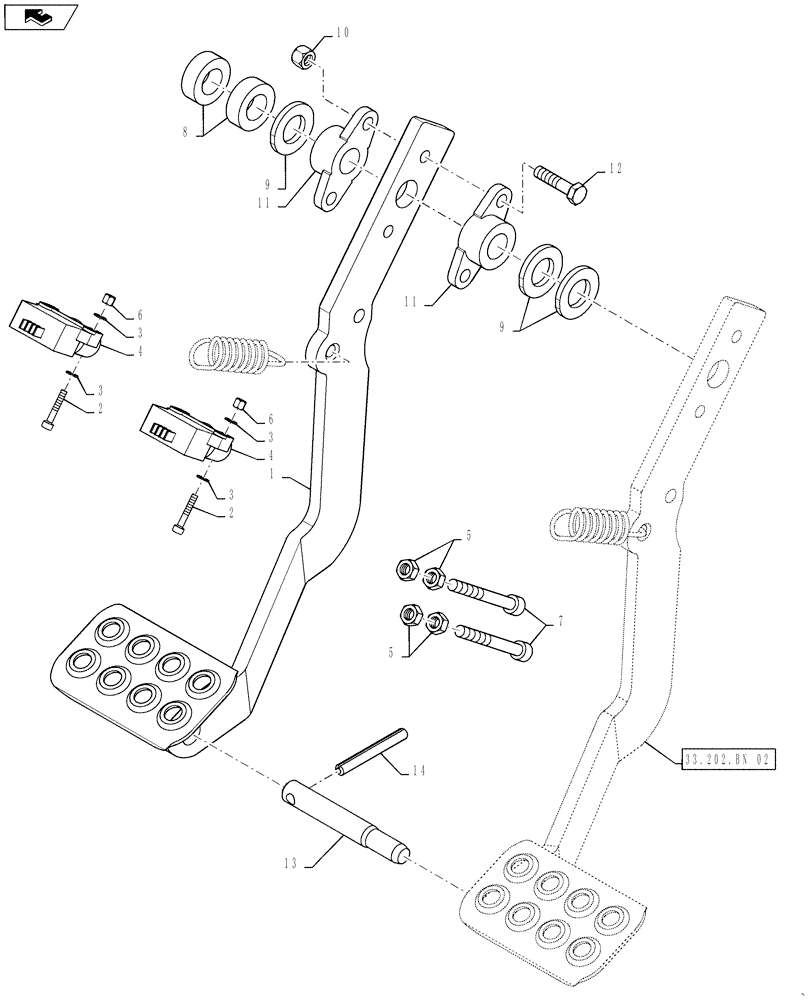

Запчасти Case 570NXT (33.202.BN[01]) - BRAKE PEDAL LEFT (33) - BRAKES & CONTROLS

1

84328349

PEDAL

Brake LH

1шт.

2

87016468

HEX SOC SCREW,M4 x 25mm, Cl 8.8

4шт.

3

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

4

82026949

PUSH BUTTON SWITCH

Brake

2шт.

5

43362

NUT,M8 x 1.25, Cl 10

4шт.

6

832-10404

NUT,M4 x 0.7, Cl 8.8

4шт.

7

87644497

ISOLATOR

Brake Pedal

2шт.

8

D124529

SPACER,19.5mm ID x 35mm OD x 12mm Thk

Pedal Mount

2шт.

9

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

M20

2шт.

10

412250

NUT,M8 x 1.25, Cl 8

2шт.

11

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

2шт.

12

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

13

D124530

PIN,15.85mm OD x 111mm L

Brake Pedal Lock

1шт.

14

138-328

LOCK PIN,5/16" x 2 1/2", Slotted

Brake Pedal

1шт.
