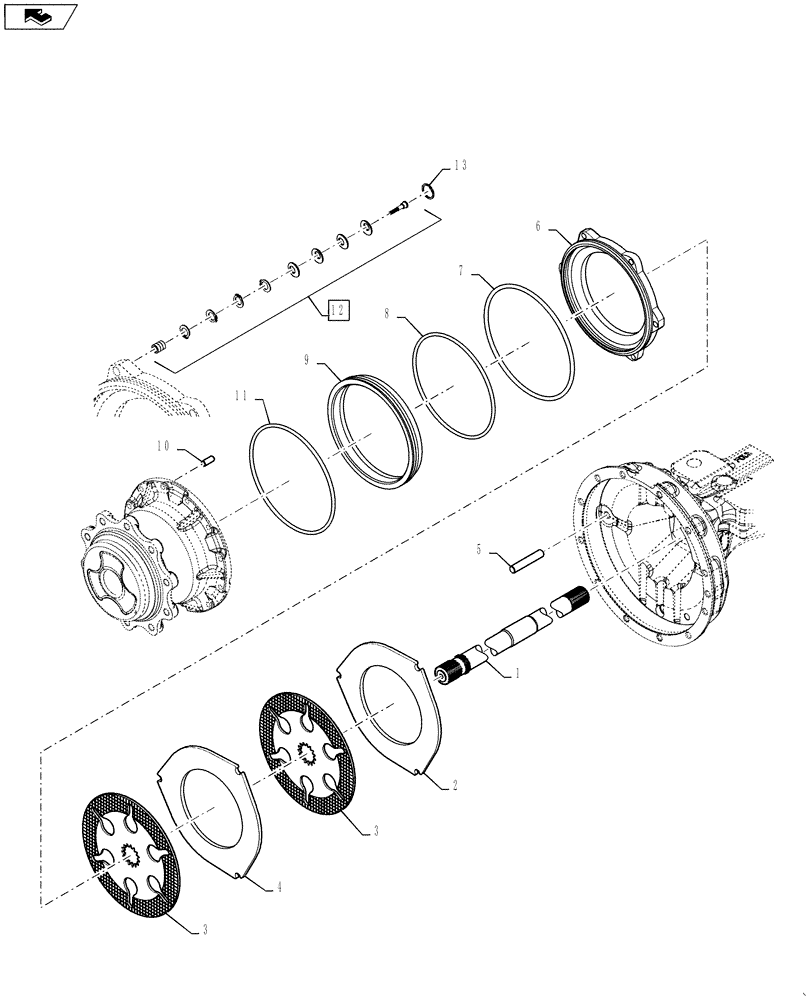

Запчасти Case 570NXT (33.120.AE) - BRAKES REAR AXLE (33) - BRAKES & CONTROLS

1

87708431

SHAFT,734mm / 28.897"

RH Half Shaft (Determine from Seat Facing Radiator)

1шт.

1

87708432

SHAFT,629mm / 24.763"

LH Half Shaft (Determine from Seat Facing Radiator)

1шт.

2

87708433

BRAKE PLATE,5mm Thk

Brake Separation Plate, 5 thick, 1 Per Side

2шт.

3

87708434

BRAKE PLATE

Brake Plate, 2 Per Side

4шт.

4

87708435

BRAKE PLATE,8mm Thk

Brake Separation Plate, 8 think, 1 Per Side

2шт.

5

139294A1

GUIDE

Pin

6шт.

6

87708436

BRAKE CYLINDER

Brake Piston, 1 Per Side

2шт.

7

87708438

O-RING

O-Ring, 1 Per Side

2шт.

8

371144A1

O-RING

Piston, External, 1 Per Side

2шт.

9

87708440

PISTON

Brake Piston, 1 Per Side

2шт.

10

D142890

DOWEL

Pin

2шт.

11

371145A1

O-RING

Piston Carrier, 1 Per Side

2шт.

12

87708441

BRAKE ADJUSTER,0.6mm

Kit, Rear Axle Self Adjust; 0.6 mm

6шт.

13

87708442

CIRCLIP

Lock Ring

6шт.
