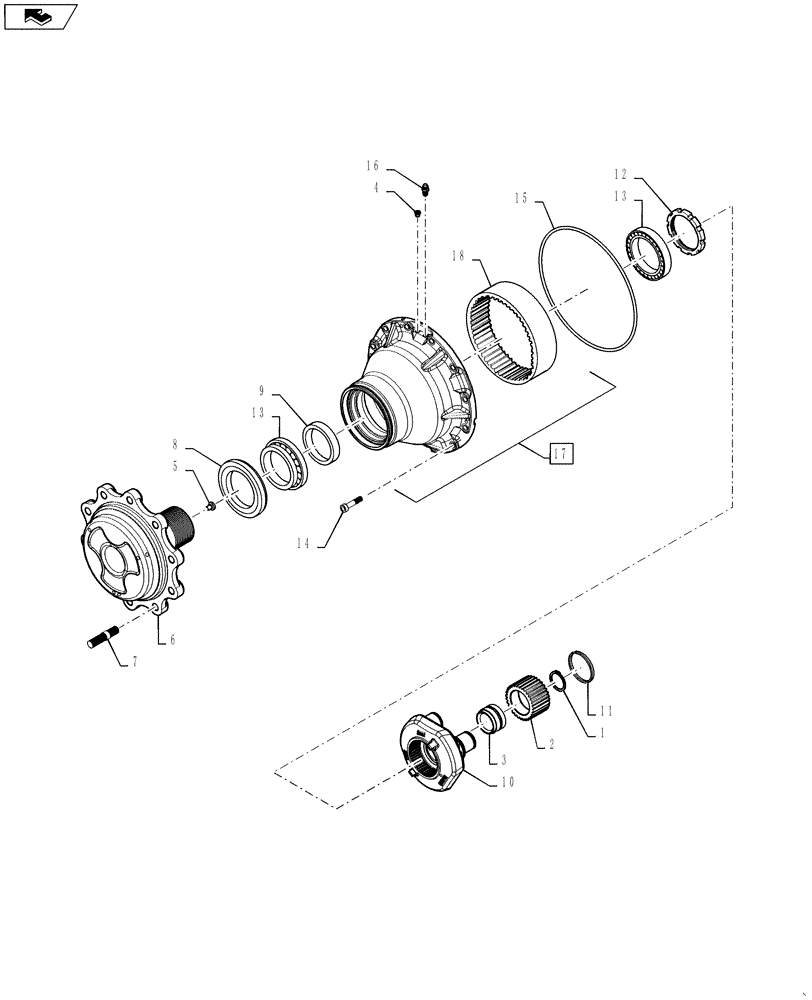

Запчасти Case 570NXT (27.120.AF) - REAR AXLE FINAL DRIVE PLANETARY (27) - REAR AXLE SYSTEM

1

800-1150

SNAP RING,M50, Ext

6шт.

2

87708443

GEAR

Wheel Hub

6шт.

3

87708444

ROLLER BEARING

Carrier

6шт.

4

9625178

PLUG,9/16" - 18 ORB

2шт.

5

K395093

HEADED PIN,12mm OD x 15mm L

Lock

2шт.

6

87708445

FLANGE

Wheel

2шт.

7

D142986

STUD,88mm L

Bolt

20шт.

8

452140A1

SEALING RING,150mm ID x 180mm OD x 14.5mm W

Flange

2шт.

9

87708447

SPACER

Gear Set

2шт.

10

87708452

PLANET CARRIER

Rear Axle

2шт.

11

87708453

SNAP RING

Wheel Hub

2шт.

12

87708454

RING NUT

M108 x 2

2шт.

13

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

Cone

4шт.

14

403955A1

BOLT

M14 x 45

24шт.

15

87711038

RING

Wheel Hub

2шт.

16

E135810

VENTING SCREW

Bleeder

2шт.

17

87708466

GEAR SET

Gear Kit

2шт.

18

87708467

RING GEAR

Rear Axle

2шт.
