(27.106.AK) - REAR AXLE DIFFERENTIAL LOCK

Запчасти Case 570NXT (27.106.AK) - REAR AXLE DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM

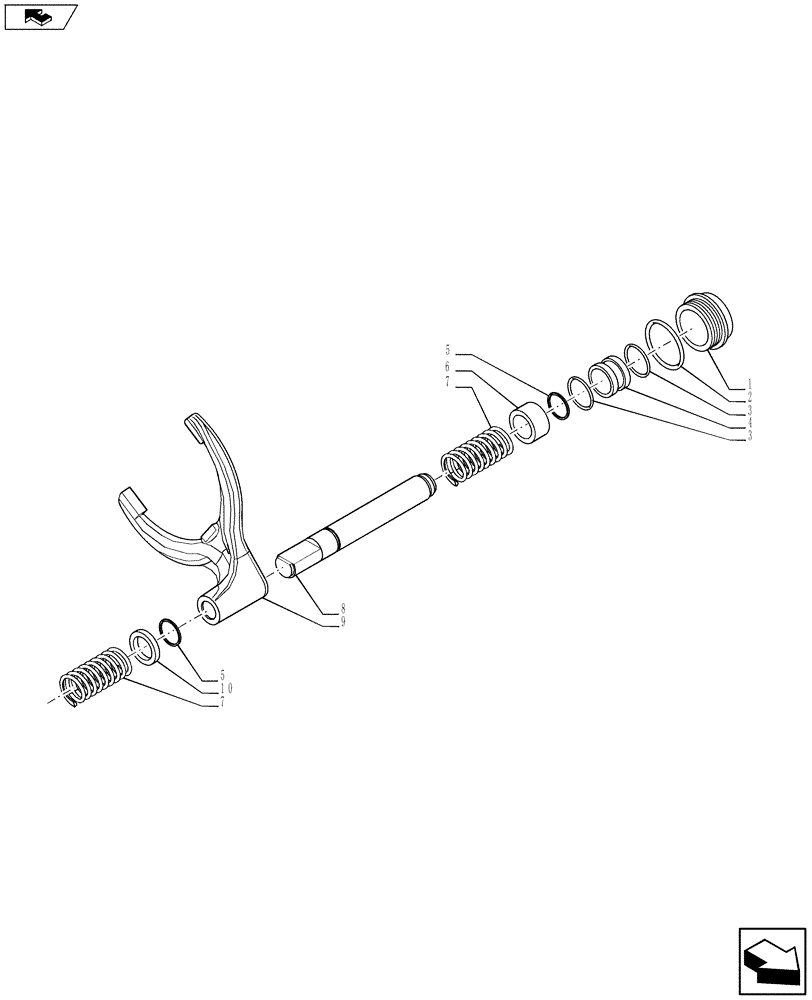

Схема запчастей Case 570NXT - (27.106.AK) - REAR AXLE DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM
9
3
5
1
3
7
4
5
6
home
2
10
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87708413

CYLINDER

Differentail Locking

1шт.

2

87708415

O-RING

Rear Axle

1шт.

3

292210A1

SEAL

Piston

2шт.

4

292212A1

PISTON

Differential Lock

1шт.

5

87708417

CIRCLIP

Rear Axle

2шт.

6

87708420

BUSHING

Rear Axle

1шт.

7

175966A1

SPRING

Locking Axle

2шт.

8

87708422

PISTON

Control

1шт.

9

87708424

FORK

Rear Axle

1шт.

10

87708427

SPACER

Rear Axle

1шт.
