(27.106.AC) - REAR AXLE DIFFERENTIAL

Запчасти Case 570NXT (27.106.AC) - REAR AXLE DIFFERENTIAL (27) - REAR AXLE SYSTEM

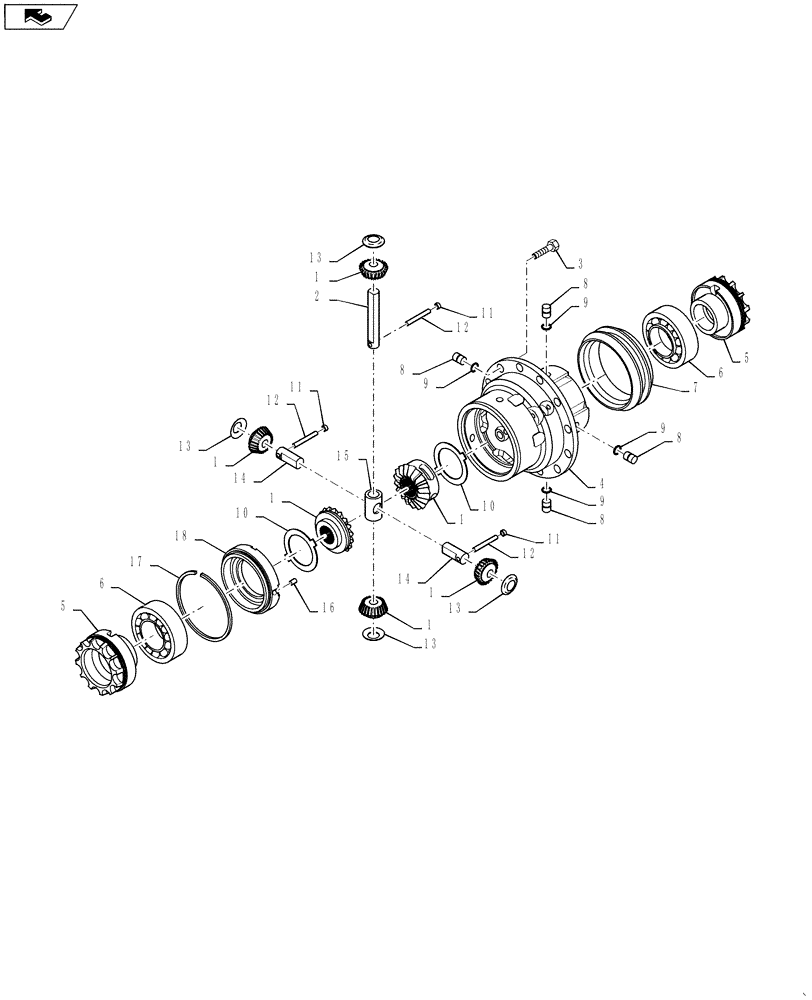

Схема запчастей Case 570NXT - (27.106.AC) - REAR AXLE DIFFERENTIAL (27) - REAR AXLE SYSTEM
8
2
1
1
17
9
13
3
8
11
9
10
18
4
1
8
13
5
11
7
12
12
12
9
6
16
14
10
1
1
14
9
1
home
15
5
8
13
13
6
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87708394

SERVICE KIT

Rear Axle Differential Components, Incl 2, 10 - 15

1шт.

2

87708399

AXLE PIN

Rear

1шт.

3

87708402

BOLT

M12

12шт.

4

87708403

HOUSING

Rear Axle

1шт.

5

87708400

RING NUT

M104 X 1.5

2шт.

6

E135785

BEARING

Side

2шт.

7

87708401

SLEEVE

Rear Axle

1шт.

8

292207A1

PIN

Differential

4шт.

9

292208A1

O-RING

Differential Lock Pin

4шт.

10

87708395

DRIVE PLATE

Rear Axle Differential

2шт.

11

D142898

PLUG,M10 x 1

3шт.

12

87708396

PIN,8mm OD x 45mm L

3шт.

13

E135777

WASHER

Thrust

4шт.

14

87708397

AXLE PIN

Differential

2шт.

15

87708398

SPIDER

Gear Rear Axle

1шт.

16

87708411

PIN,8mm OD x 12mm L

Roller

1шт.

17

87708409

CIRCLIP

Rear Axle

1шт.

18

87708408

HOUSING

Housing

1шт.
