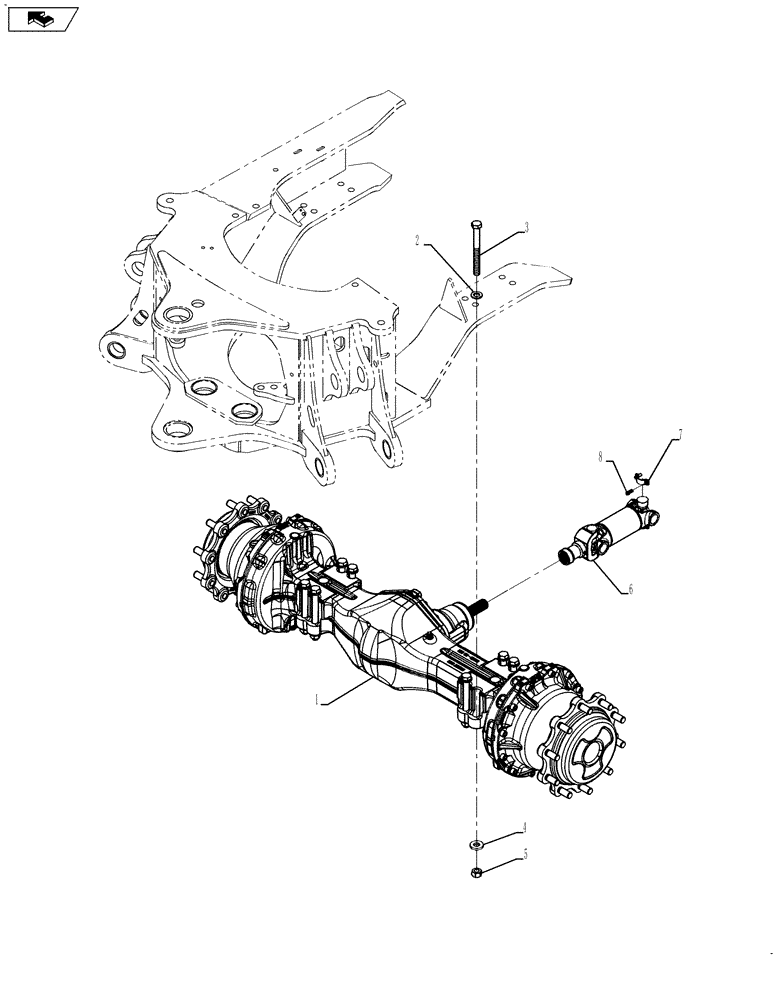

Запчасти Case 570NXT (27.100.AK) - REAR AXLE MOUNTING (27) - REAR AXLE SYSTEM

1

87395372

REAR AXLE

Assembly

1шт.

1

87395372R

REMAN-REAR AXLE

570NXT - LOADER LANDSCAPER - TIER 4A (6/12-)

1шт.

1

87395372C

CORE-REAR AXLE

Return Number

1шт.

2

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

8шт.

3

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

8шт.

4

87618533

WASHER,21mm ID x 46mm OD x 6.4mm Thk

8шт.

5

829-1420

NUT,M20, Cl 10

8шт.

6

87613924

DRIVE SHAFT

Rear

1шт.

7

D137626

CLAMP,30.175mm D Clamping Pipe

Driveshaft Spider Bearing

2шт.

8

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Driveshaft

4шт.
