Запчасти Case 570NXT (25.400.AQ) - FRONT AXLE HOUSING SWIVEL 2WD (25) - FRONT AXLE SYSTEM

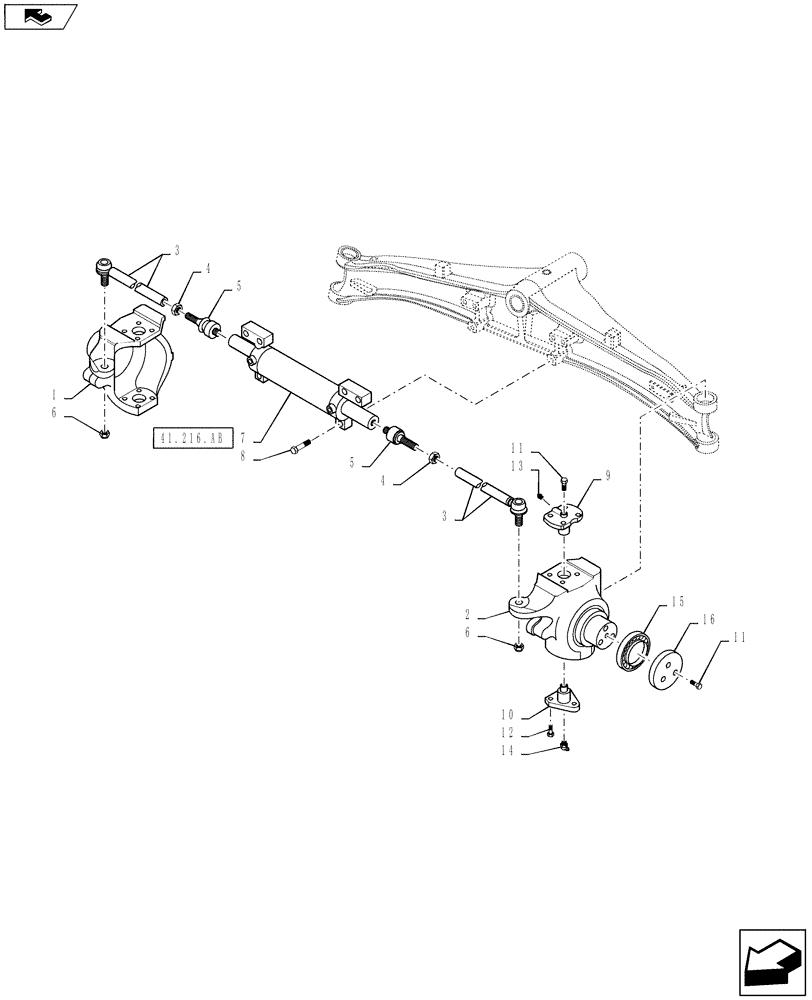

Схема запчастей Case 570NXT - (25.400.AQ) - FRONT AXLE HOUSING SWIVEL 2WD (25) - FRONT AXLE SYSTEM
7
5
11
9
4
4
10
2
41.216.ab
home
3
11
6
8
3
14
13
5
15
6
12
16
1

Артикул

Название

Примечание

Количество

1

429231A1

STEERING KNUCKLE,RH

Swivel, Right-Hand

1шт.

2

429232A1

STEERING KNUCKLE,LH

Swivel, Left-Hand

1шт.

3

401054A1

TIE-ROD,34mm OD x 260mm L

Threaded

2шт.

4

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

2шт.

5

112509A1

BALL JOINT

Steering

2шт.

6

905839R1

LOCK NUT,M18 x 1.5, Thin

2шт.

7

401055A1

STEERING CYLINDER

(Two Wheel Drive) See Fig. 41.216.AB

1шт.

8

863-16070

HEX SOC SCREW,M16 x 70mm, Cl 12.9

6шт.

9

122265A1

PIN,35mm / 45mm OD x 45.5mm L

King, Upper

2шт.

10

122259A1

PIVOT,120mm OD, 15mm ID, 5mm L

King Pin, Lower; Triangular Shape

2шт.

11

100533A1

BOLT,Self-Lock, M12 x 30mm

Lock, M12 x 30

14шт.

12

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

Lock, M14 x 35; Lower King Pin

6шт.

13

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

14

N13505

LUBE NIPPLE,45 Degree, M6 x 1

Lower King Pin

2шт.

15

401059A1

THRUST BEARING

Axle

2шт.

16

401060A1

THRUST WASHER

Plate

2шт.

Выбрано товаров: 16
