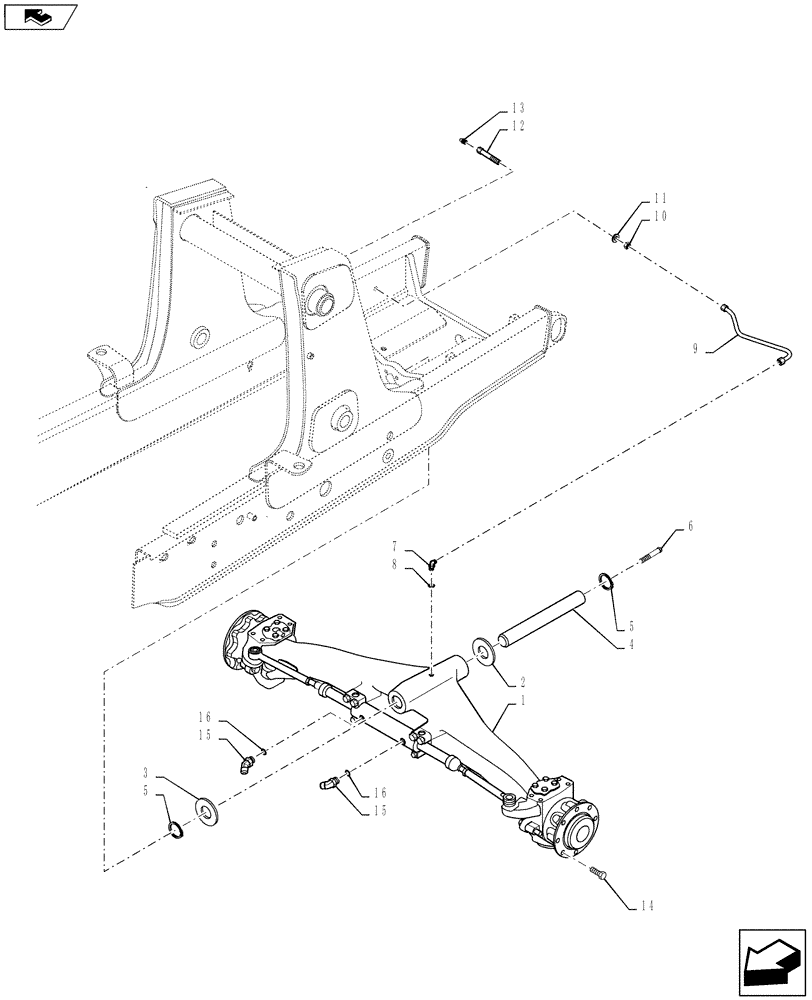

Запчасти Case 570NXT (25.400.AM) - FRONT AXLE 2WD INSTALLATION (25) - FRONT AXLE SYSTEM

1

86990837

AXLE

New Rear, Two Wheel Drive

1шт.

1

86990837R

REMAN-AXLE

Reman Rear, Two Wheel Drive

1шт.

1

86990837C

CORE-AXLE

Core Rear, Two Wheel Drive

1шт.

2

191796A1

WASHER,51.6mm ID x 92mm OD x 1.98mm Thk

2 x 4 x 1/16

1шт.

3

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

Thrust, 2-1/2 x 4-1/2 x 3/16

1шт.

4

391451A1

PIVOT PIN,50mm OD x 431.5mm L

431.5 mm (17 in) lg; One Hole Opposite Tapered End

1шт.

5

800-44050

SNAP RING,M50, Ext

2шт.

6

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

7

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Also Order 8

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

381386A1

HOSE ASSY.,1/8" ID x 500mm L, ES-B120 Class 16

500 mm (19-11/16 in), Lubrication Line

1шт.

10

218-1275

NUT,Blkhd, 7/16"-20

1шт.

11

495-11047

WASHER,7/16", SAE

1шт.

12

381442A1

CONNECTION

Lube

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

14

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Stud

16шт.

15

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Incl 16

2шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
