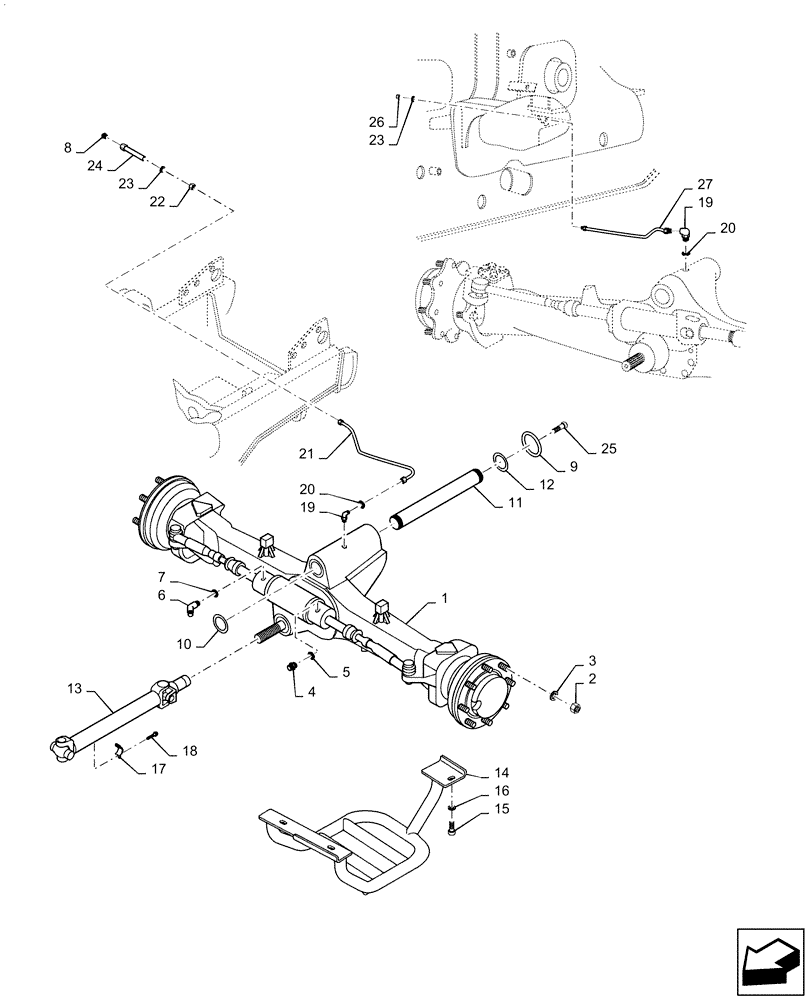

Запчасти Case 570NXT (25.400.AM[02]) - FRONT AXLE 4WD INSTALLATION (25) - FRONT AXLE SYSTEM

1

87395365

4WD AXLE ASSY

Steering Axle

1шт.

1

87395365R

REMAN-AXLE DIFFERENT

Axle, 4WD, Remanufactured

1шт.

1

87395365C

CORE-AXLE, MFD

Axle, 4WD, Core

1шт.

2

100092

WHEEL NUT,M18 x 1.5, Cl 8

16шт.

3

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

16шт.

4

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl 5

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

218-5529

ELBOW,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

Incl 7

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

9

800-44050

SNAP RING,M50, Ext

2шт.

10

191796A1

WASHER,51.6mm ID x 92mm OD x 1.98mm Thk

2 x 4 x 1/16

1шт.

11

391451A1

PIVOT PIN,50mm OD x 431.5mm L

Axle

1шт.

12

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

2-1/2 x 4-1/2 x 3/16

1шт.

13

87405326

DRIVE SHAFT

Component Parts Not Available

1шт.

14

84387063

GUARD

Drive Shaft

1шт.

15

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

16

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

17

87538515

KIT

U-Joint

2шт.

18

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Hex Flange Head, Special, 5/16 - 24 UNF x 1-1/16

4шт.

19

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Incl 20

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

21

381386A1

HOSE ASSY.,1/8" ID x 500mm L, ES-B120 Class 16

500 mm (19-11/16 in), Lubrication Line

1шт.

22

218-1275

NUT,Blkhd, 7/16"-20

Use When Using 21

1шт.

23

495-11047

WASHER,7/16", SAE

1шт.

24

381442A1

CONNECTION

Lubrication Line, Use When Using 21

1шт.

25

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

26

F53473

LOCK NUT,1/8-27 NPSM

Use When Using 27

1шт.

27

87572760

HOSE ASSY.,6.4mm ID x 533mm L

533 mm (21 in), Lubrication Line

1шт.
