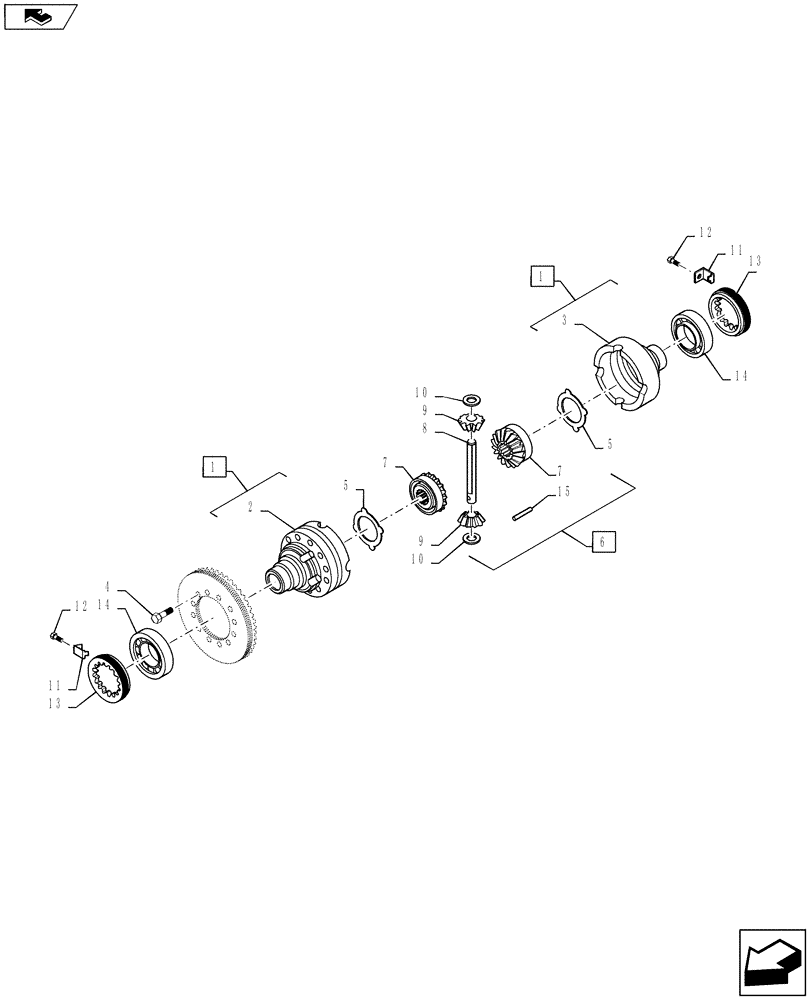

Запчасти Case 570NXT (25.102.AD) - FRONT AXLE DIFFERENTIAL, 4WD (25) - FRONT AXLE SYSTEM

1

294933A1

HOUSING

Differential, Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Plain Half, Incl in 1

1шт.

4

5194194

BOLT,Hex, M10 x 75

12шт.

5

1967003C1

THRUST WASHER

2шт.

6

231397A1

SERVICE KIT

Differential, Service Replacement, Incl 7 - 10, 15

1шт.

7

NSS

NOT SOLD SEPARAT

Gear, Side, Incl in 6

2шт.

8

87712525

SHAFT

Pinion Gear Shaft

1шт.

9

NSS

NOT SOLD SEPARAT

Pinion Gear, Incl in 6

2шт.

10

87712536

THRUST WASHER

Plate

2шт.

11

1966153C1

LOCKING PLATE

Retainer

2шт.

12

112486A1

BOLT,Hex, M6 x 12

2шт.

13

1966559C1

NUT

Nut

2шт.

14

K395027

TAPERED BEARING

50 ID 90 OD

2шт.

15

87712524

AXLE PIN

D7 x 40 Pin

1шт.
