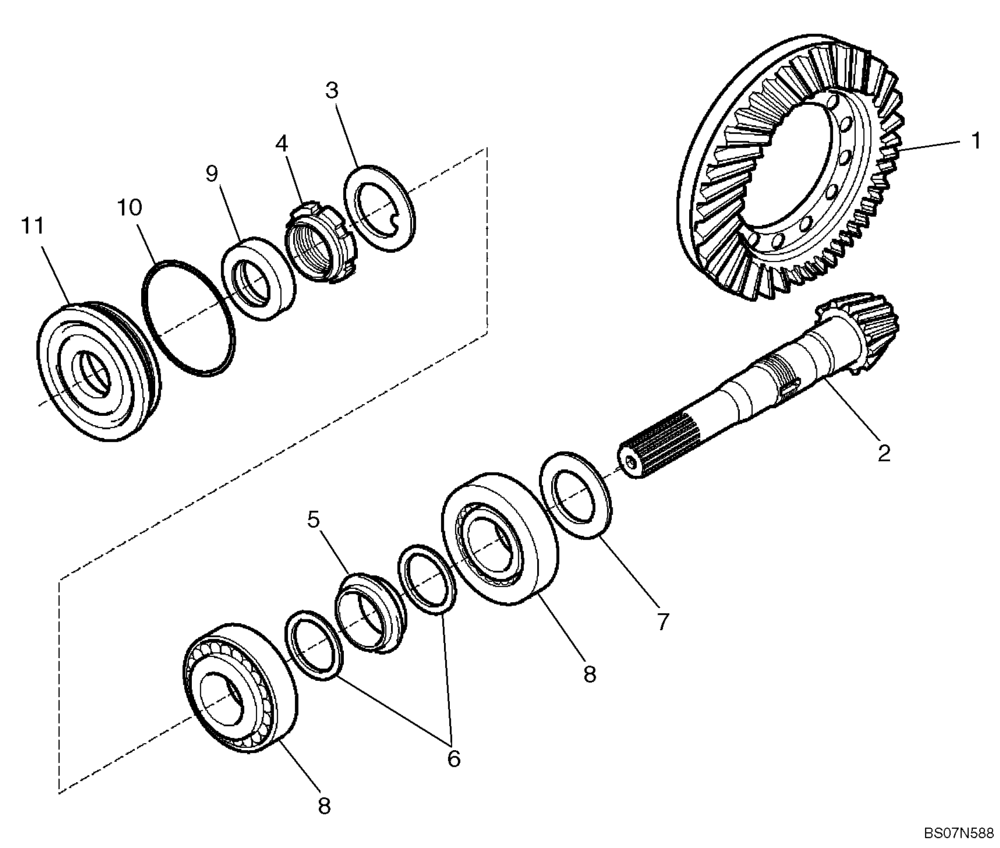

Запчасти Case 570NXT (25.102.AD[01]) - FRONT AXLE DIFFERENTIAL, 4WD, RING & PINION (25) - FRONT AXLE SYSTEM

144460A1

GEAR SET

Ring and Pinion, Incl Ref 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Gear

1шт.

2

NSS

NOT SOLD SEPARAT

Pinion Gear

1шт.

3

9968031

WASHER,41mm ID x 62mm OD x 2mm Thk

1шт.

4

K261014

RING NUT,M40 x 1.5

Ring

1шт.

5

1349058C1

SPACER

Collapsible

1шт.

6

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

2шт.

7

140954A1

SHIM,2.50mm Thk

1шт.

7

140953A1

SHIM,2.60mm Thk

1шт.

7

140951A1

SHIM,2.70mm Thk

1шт.

7

140949A1

SHIM,2.80mm Thk

1шт.

7

140948A1

SHIM,2.90mm Thk

1шт.

7

140943A1

SHIM,3.00mm Thk

1шт.

7

140944A1

SHIM,3.10mm Thk

1шт.

7

140945A1

SHIM,3.20mm Thk

1шт.

7

140946A1

SHIM,3.30mm Thk

1шт.

7

140947A1

SHIM,3.40mm Thk

1шт.

8

K395090

TAPERED BEARING,40mm ID x 90mm OD

2шт.

9

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

1шт.

10

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

11

128570A1

FLANGE

Cover, Differential

1шт.
