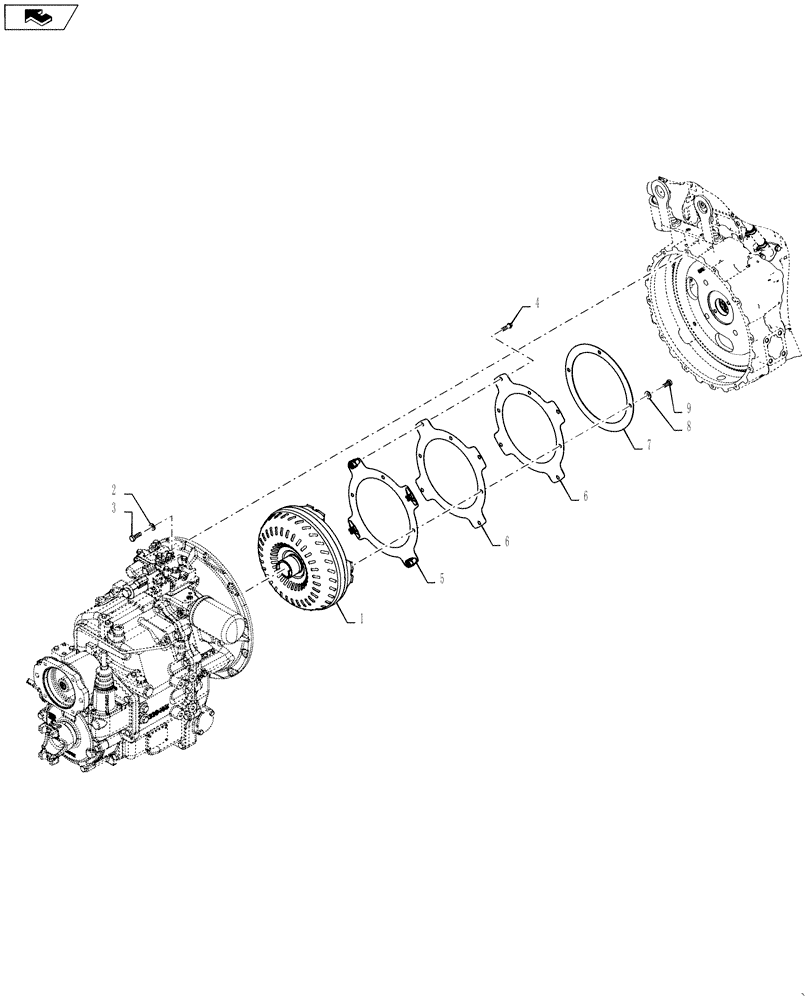

Запчасти Case 570NXT (21.700.AJ) - TORQUE CONVERTER MOUNTING (21) - TRANSMISSION

1

87702194

TORQUE CONVERTER

New

1шт.

1

87702194R

REMAN-TORQUE CONVERT

Reman for New PN 87702194

1шт.

1

87702194C

CORE-TORQUE CONVERTR

Return Number

1шт.

2

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

4

87019767

12 PT SCREW,M10 x 1.25 x 30mm, Cl 10.9

4шт.

4

1183269

12 PT SCREW,M10 x 1.5 x 30mm, Cl 10.9

Use with kit 47442982

4шт.

5

87406934

PLATE

Flex With Caged Nut

1шт.

5

47442982

KIT

Flex With Caged Nut

1шт.

6

86993546

PLATE,224mm ID x 284mm OD x 0.5mm Thk

Flex

2шт.

7

87409201

BACKING PLATE,228mm ID x 280mm OD x 1.5mm Thk

Torque Converter

1шт.

8

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10

4шт.

9

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.
