(21.182.AB[01]) - DIFFERENTIAL LOCK HOSE ASSY, 4WD, WITHOUT PTO

Запчасти Case 570N EP (21.182.AB[01]) - DIFFERENTIAL LOCK HOSE ASSY, 4WD, WITHOUT PTO (21) - TRANSMISSION

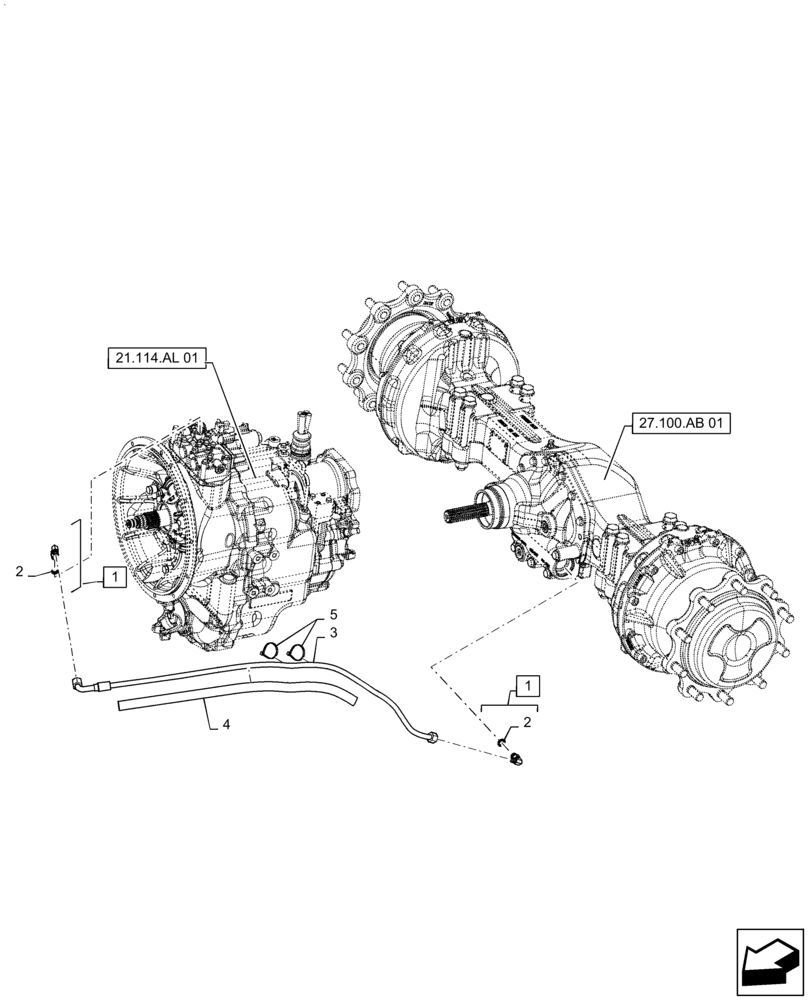

Схема запчастей Case 570N EP - (21.182.AB[01]) - DIFFERENTIAL LOCK HOSE ASSY, 4WD, WITHOUT PTO (21) - TRANSMISSION
1
2
27.100.ab 01
2
4
5
1
21.114.al 01
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl 2

2шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 1

2шт.

3

87431701

HYDRAULIC HOSE,6.4mm ID x 1350mm L

Differential Lock

1шт.

4

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

Guard

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

2шт.
