(21.140.AE[02]) - TRANSMISSION PRIMARY & REVERSE SHAFT, 2WD & 4WD

Запчасти Case 570N EP (21.140.AE[02]) - TRANSMISSION PRIMARY & REVERSE SHAFT, 2WD & 4WD (21) - TRANSMISSION

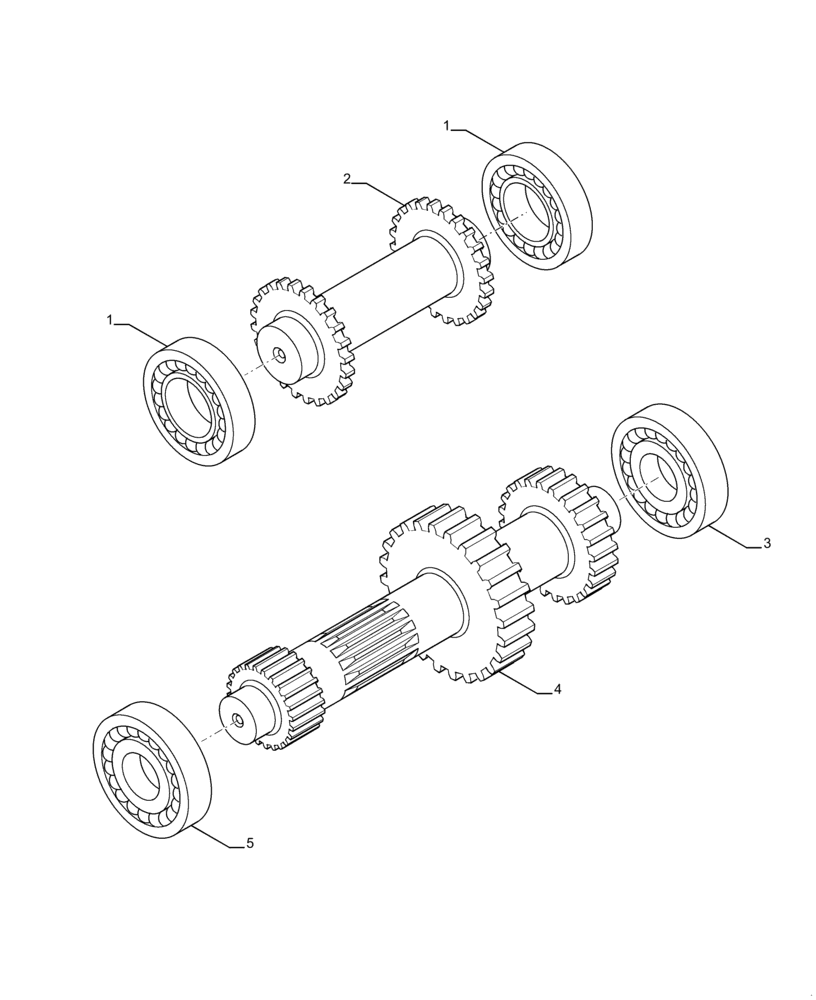

Схема запчастей Case 570N EP - (21.140.AE[02]) - TRANSMISSION PRIMARY & REVERSE SHAFT, 2WD & 4WD (21) - TRANSMISSION
4
5
1
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

2шт.

2

366237A1

SHAFT

Reverse

1шт.

3

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

, Years: -15-SEP-15

1шт.

3

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

, Start Year: 15-SEP-15

1шт.

4

87701276

PRIMARY SHAFT

Primary

1шт.

5

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.
