Запчасти Case 570N EP (10.216.BA[01]) - FUEL LINES (10) - ENGINE

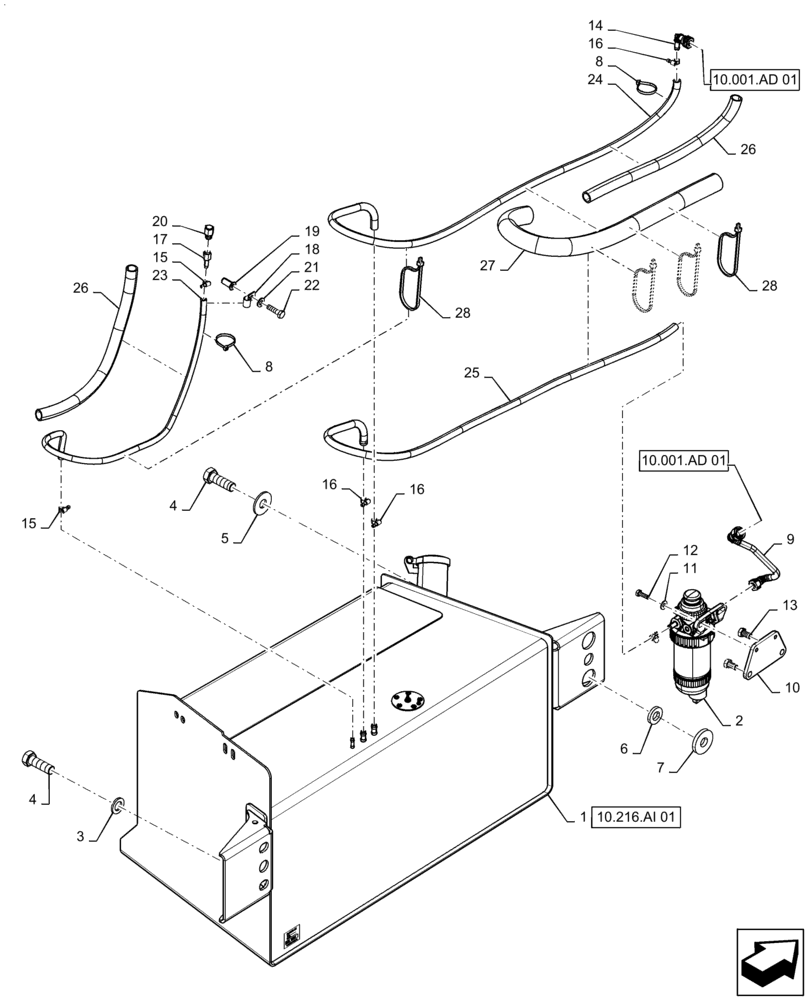

Схема запчастей Case 570N EP - (10.216.BA[01]) - FUEL LINES (10) - ENGINE
20
4
25
15
27
1
10
16
10.001.ad 01
26
22
18
8
7
23
10.001.ad 01
15
16
21
4
11
10.216.ai 01
28
3
16
28
26
5
2
17
14
8
9
12
6
19
13
24

Артикул

Название

Примечание

Количество

1

47575069

FUEL TANK

31 Gallon

1шт.

See Fig 10.216.AI (01) For Service Parts

1шт.

2

47541051

FUEL FILTER,W/ WIF Sensor

Tier 4B

1шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

4

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

4шт.

5

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

Heat Treated

2шт.

6

185926A1

SPACER,21mm x 40mm x 6.6mm Th

Tank

2шт.

7

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

Tank

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

9

84391629

RIGID TUBE

Fuel Line, Suction, Filter to Engine

1шт.

10

47432274

PLATE

Fuel Filter Mounting

1шт.

11

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

12

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

13

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

2шт.

14

84425860

FITTING,90 Degree, for Fuel Hose 9.5mm ID

Fuel,

1шт.

15

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

16

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

4шт.

17

217-117

FITTING,1/4" Hose x 1/4" NPTF, Fem, Barbed

1шт.

18

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

19

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

1шт.

20

130047A1

BREATHER ASSY.

Vent, Fuel

1шт.

21

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

22

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

23

87656146

FUEL HOSE,6.35 mm ID x 880.00 mm

1шт.

24

87658696

FUEL HOSE,9.53 mm ID x 1315.00 mm, SAE 30R7

Fuel Hose, Inlet

1шт.

25

47589004

FUEL HOSE,9.5mm ID x 1170mm L

Fuel Hose, Inlet

1шт.

26

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

1шт.

27

47589468

HOSE PROTECTION,34mm ID x 750mm L

Guard

1шт.

28

L18331

CABLE TIE,375.9mm L, Nylon, Black

4шт.
