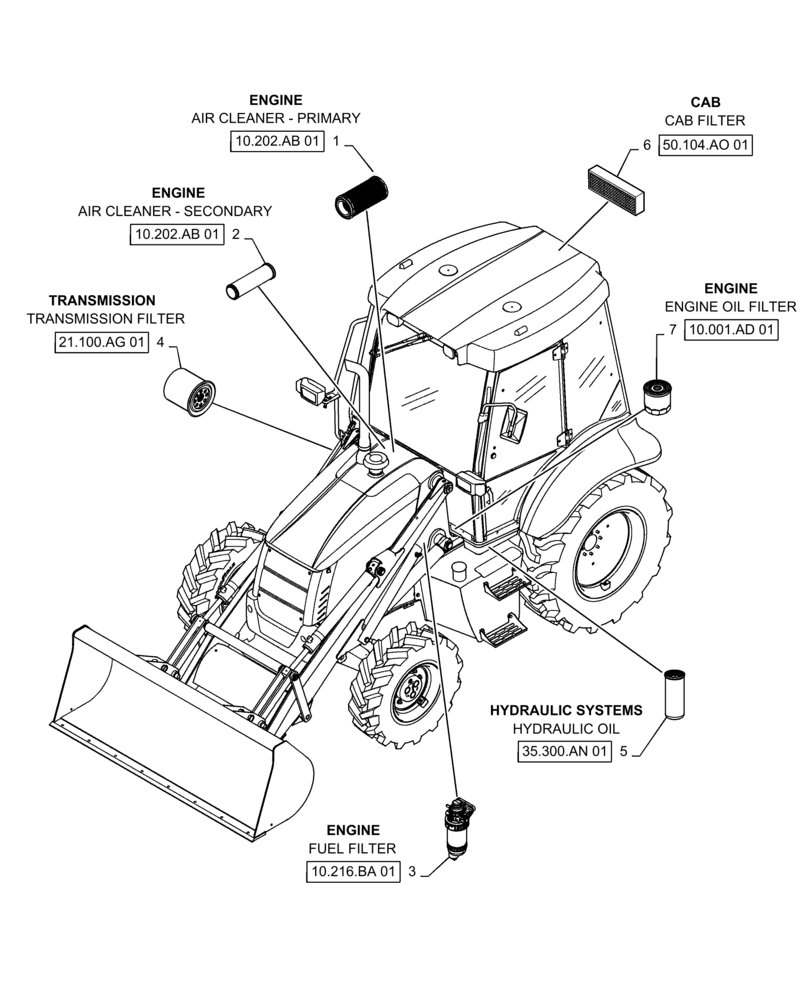

Запчасти Case 570N EP (05.100.03) - FILTERS (05) - SERVICE & MAINTENANCE

1

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Primary (Replace Every 1000 hrs)

1шт.

2

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Secondary (Replace Every 1000 hrs)

1шт.

3

84565926

FUEL FILTER,20.6mm ID x 85mm OD x 154.3mm L, W/ Water Drain

(Replace, Initial 100 hrs, then Every 500 hrs)

1шт.

3

5801477167

FILTER CARTRIDGE

See Fig 10.206.AG

1шт.

3

84534796

ELEMENT,Spin-on, M20 x 1.5, 96mm OD x 195mm L

See Fig 10.206.AG

1шт.

4

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

2WD & 4WD Transmission Oil, (Replace, Initial 100 hrs, then Every 1000 hrs)

1шт.

5

84255607

HYDRAULIC OIL FILTER,Spin-on, M87 x 2.5, 98.8mm OD x 239.8mm L

Hydraulic Oil Filter (Replace, Initial 100 hrs, then Every 1000 hrs)

1шт.

6

139768A1

FILTER, ELEMENT

Cab (Check Every 1000 hrs)

2шт.

7

48138563

(Replace Every 500 hrs)

ENGINE OIL FILTER

1шт.
