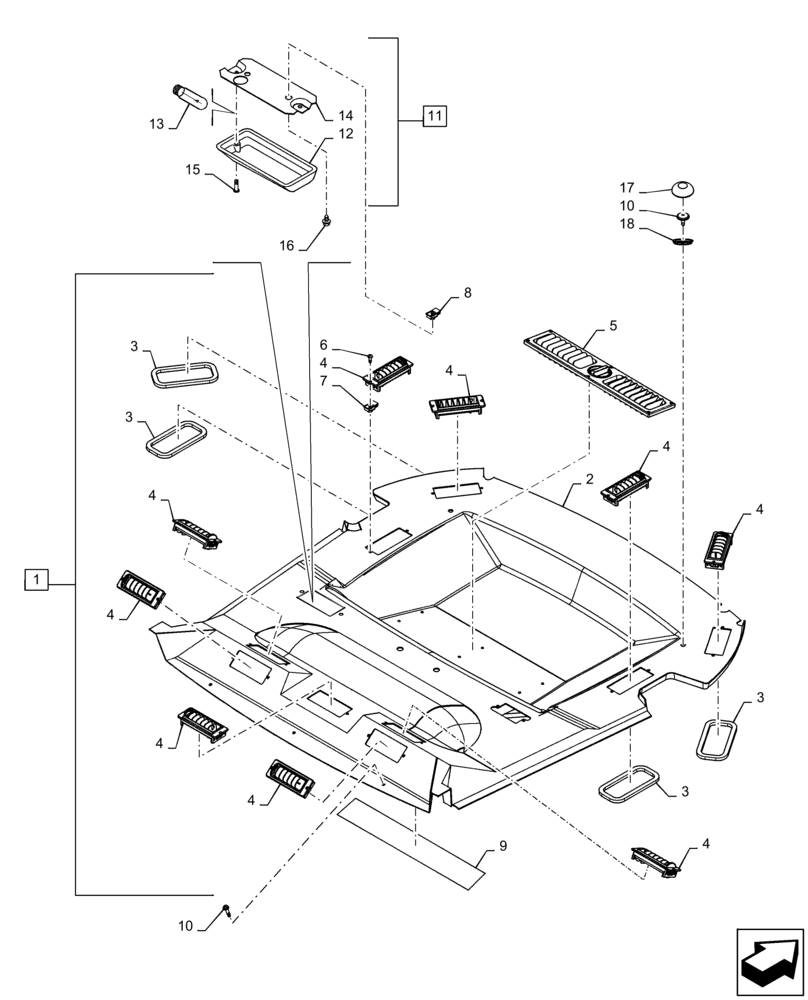

Запчасти Case 570N EP (90.160.AX[01]) - VAR - 747852, 747853 - STANDARD CAB HEADLINER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

404172A1

ROOF LINING

Complete, Headliner, Plastic (Wheat) Incl 2 - 9

1шт.

See Fig 55.512.AA for Cloth Headliner

1шт.

2

123733A1

LINING

Headliner

1шт.

3

131973A1

SEAL

Duct Seal

5шт.

4

125688A1

DIFFUSER

Louver, Heat and Air

9шт.

5

1331102C2

DIFFUSER

Louver, Air Recirculation

1шт.

6

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

24шт.

6

47915691

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

, Start Year: 26-AUG-15

24шт.

7

125749A1

SPRING NUT

U - Type

24шт.

8

131-861

SPRING NUT,Tinn, U, #10-24

2шт.

9

186797A1

SEALING STRIP

Adhesive Backed Seal, 19 x 75 x 550 mm

1шт.

10

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

5шт.

11

47858543

LAMP BASE

Assy, LED

1шт.

11

R53755

LIGHT ASSY.,12V

Dome, 12 Volt, Incl 12 - 15

1шт.

12

N14465

LENS

Dome Light, Incl in 11

1шт.

13

N14466

BULB

Incl in 11

1шт.

14

NSS

NOT SOLD SEPARAT

Base, Dome Lamp, Incl in 11

1шт.

15

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

16

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

2шт.

17

194858A1

CUP WASHER

Flat Washer

2шт.

18

D134923

CAP

Bolt Cap

2шт.
