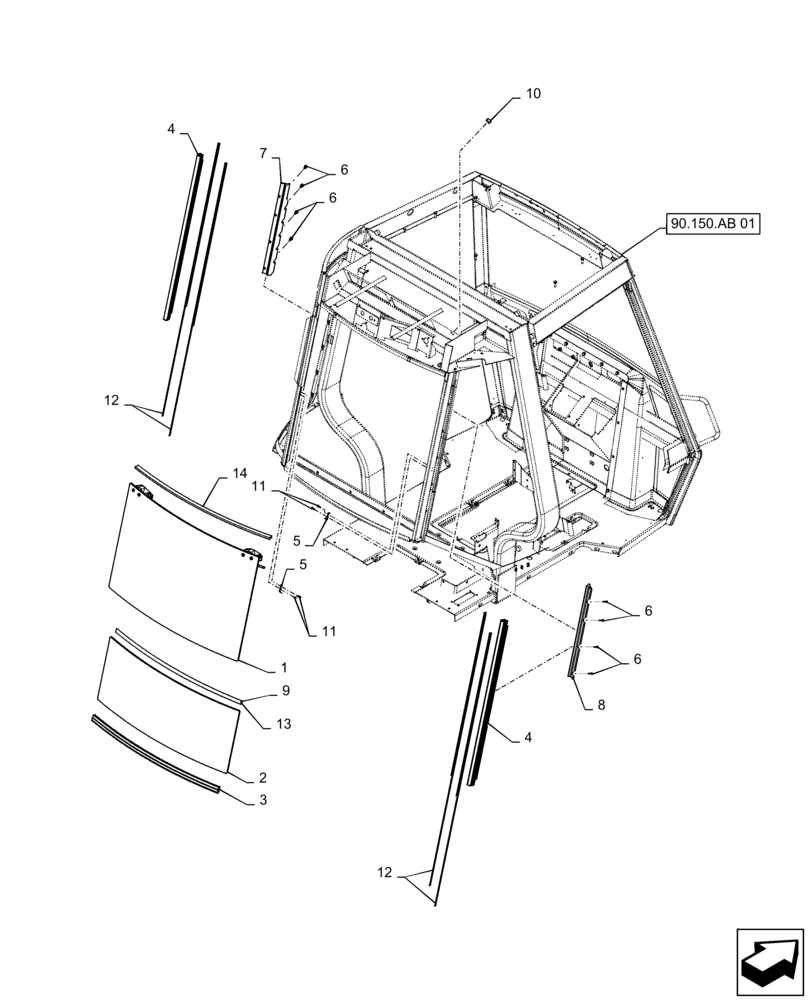

Запчасти Case 570N EP (90.156.AB[01]) - VAR - 747852, 747853 - REAR WINDOW, 2 PIECE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D129967

GLASS

Tinted Upper North America Only

1шт.

1

E49808

GLASS

Upper Europe Only

1шт.

2

175092A1

GLASS

Lower North America Only

1шт.

2

225599A1

GLASS

Lower Europe Only

1шт.

3

137315A1

SEAL,899.6mm L

Lower Rear Window

1шт.

4

87702619

GUIDE

Track Rear Window

2шт.

5

177833A1

SUPPORT

Angle Lower

2шт.

6

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

8шт.

7

177251A1

SUPPORT

Retainer LH Top

1шт.

8

177252A1

SUPPORT

Retainer RH Top

1шт.

9

436976A1

ORNAMENTAL STRIP

Rear Window

1шт.

10

353-407

PLUG,Dome, .687" hole, Nylon

1шт.

11

280-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

4шт.

12

178130A1

SEAL

Rear Window Foam

4шт.

13

E48388

SEAL

Seal Rear Window

1шт.

14

106974A1

SEAL,912mm L

Rear Window Top

1шт.
