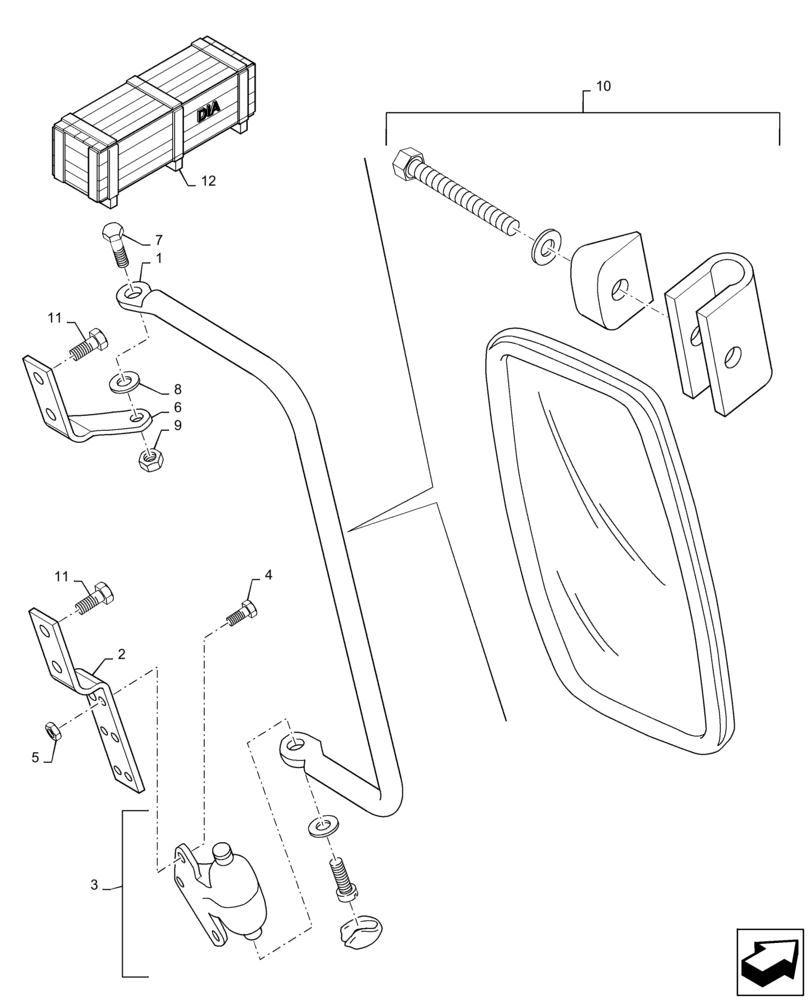

Запчасти Case 570N EP (90.118.BM[01]) - CAB, MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D142086

TUBE

2шт.

2

D142083

BRACKET

Lower Mirror

2шт.

3

D142144

HINGE

2шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

5

131-71

NUT

6шт.

6

D142084

BRACKET

RH, Upper Mirror

1шт.

6

D142085

BRACKET

LH, Upper Mirror

1шт.

7

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

A167037

WASHER

2шт.

9

131-665

LOCK NUT,5/16"-18, GB

2шт.

10

R54682

MIRROR

2шт.

11

187-1310

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

8шт.

12

D102964

KIT

DIA Kit, Outside Cab Mirror, Incl 1 - 11

1шт.
