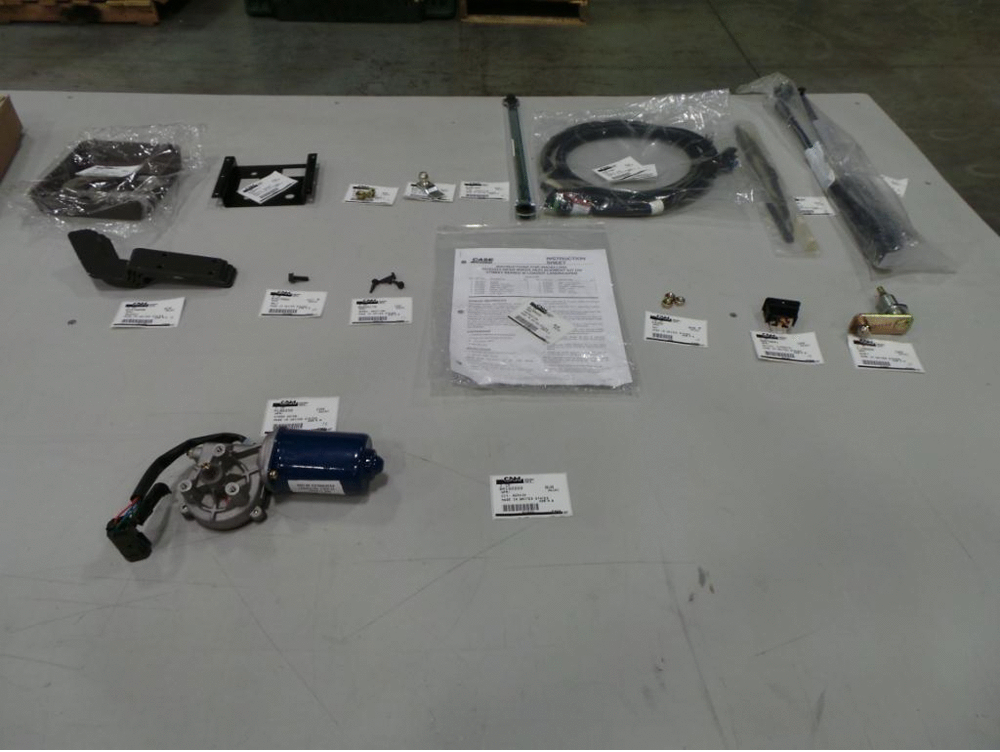

Запчасти Case 570N EP (88.100.AN[02]) - KIT WIPER REAR REPLACEMENT (88) - ACCESSORIES

1

84162223

REPAIR KIT

Incl 2 - 17

1шт.

2

84180039

INSTRUCTION

1шт.

3

87470608

BRACKET

4шт.

4

87476205

WIPER ARM

Rear

1шт.

5

87476206

WIPER BLADE

350mm

1шт.

6

87477289

WIRE HARNESS

1шт.

7

87481805

CONNECTING LINK

1шт.

8

87481806

PIVOTING ARM

1шт.

9

87493412

INSTRUMENT PANEL

1шт.

10

87493411

BRACKET, SUPPORTING

1шт.

11

86625176

SELF-TAP SCREW,Hex Washer, #10 - 16 x 3/4"

5шт.

12

87481860

FLANGE NUT,M8 x 1.25 thd toothed flange

2шт.

13

D128020

SHAFT

1шт.

14

43362

NUT,M8 x 1.25, Cl 10

3шт.

15

87015862

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

16

386786A1

ROCKER SWITCH

1шт.

17

A186256

WIPER MOTOR,12V

1шт.
