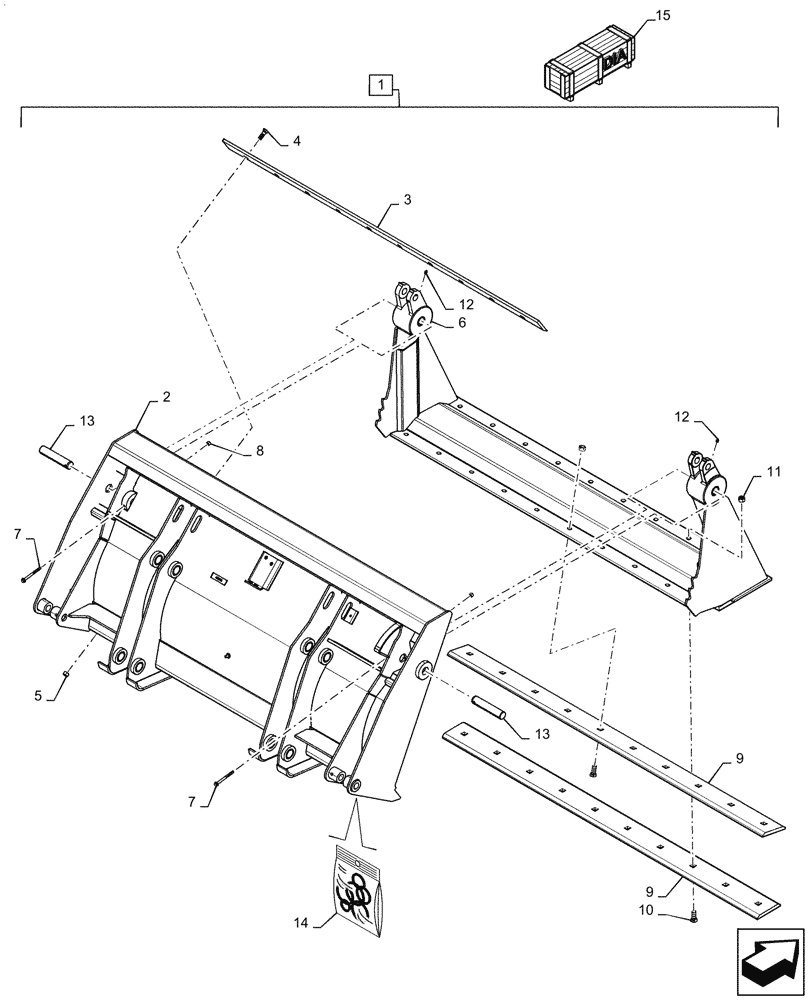

Запчасти Case 570N EP (82.300.AN[04]) - VAR - 747863 - LOADER BUCKET, 82", 4 IN 1 (82) - FRONT LOADER & BUCKET

1

47613231

4 IN 1 BUCKET

Complete, Incl 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

Blade, Incl in 1

1шт.

3

121920A1

CUTTING EDGE,Bolt On, 10 Holes, 12.7mm W x 2080mm L

1шт.

4

20-21032

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 8

10шт.

5

29-1010

NUT,5/8"-11, G8

10шт.

6

175156A1

CLAMSHELL BUCKET

Front

1шт.

7

844-10110

BOLT,Hvy Hex, M10 x 110mm, Cl 8.8

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

142300A1

CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2083mm L

2шт.

10

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

20шт.

11

29-1012

NUT,3/4"-10, G8

20шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

13

D51391

PIN,15mm OD x 74mm L

Pivot

2шт.

14

47837450

KIT

Repair Kit for 4-in-1 Loader Bucket, Gusset Plates (Qty.4)

1шт.

15

84482628

BUCKET

82", 4 In 1 Bucket (Order from Wholegoos Only) Incl 1 - 13

1шт.

To See The Full DIA KIT Composition, Look For All The Figures Where The DIA KIT P/N Is Shown

1шт.
