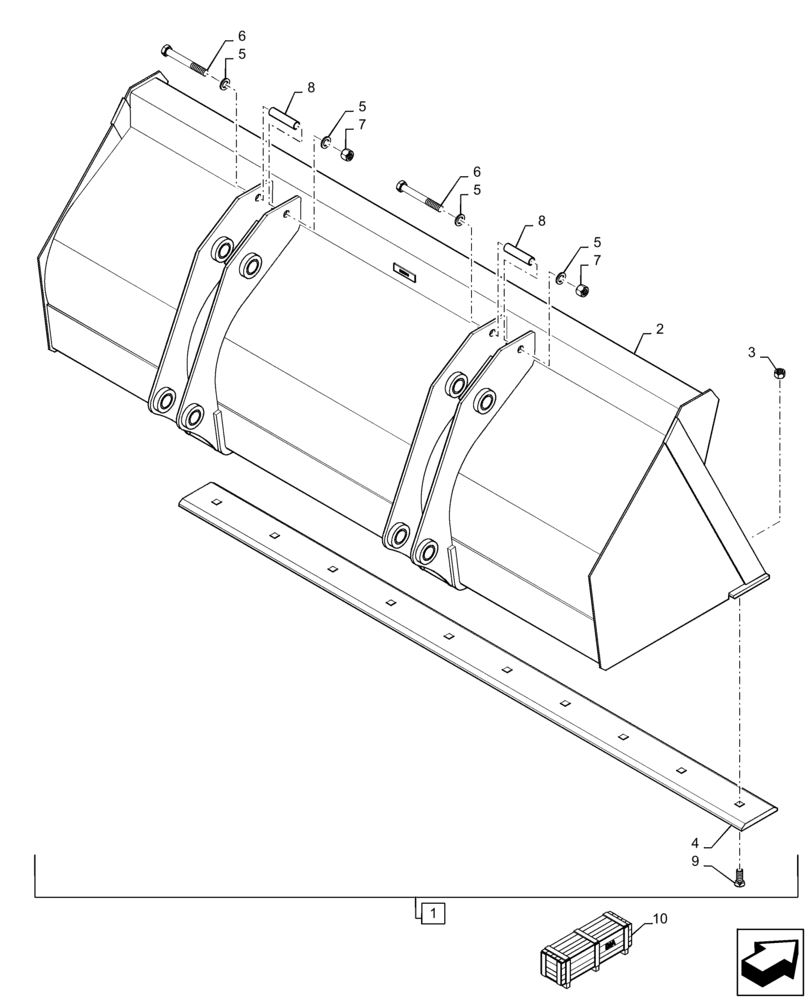

Запчасти Case 570N EP (82.300.AN[03]) - VAR - 747539 - LOADER BUCKET, 93" (82) - FRONT LOADER & BUCKET

1

84470522

BUCKET,93 Inch LLGP W/ Blade

93", Complete, Incl 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

93" Bucket, Incl in 1

1шт.

3

429-1012

NUT,3/4"-10, G8

10шт.

4

87375240

CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2392mm L

93" Loader Bucket

1шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

6

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

7

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

8

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

Chain Hook

2шт.

9

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

10шт.

10

84482612

SERVICE KIT

DIA Kit, 93" Gray Bucket with Bolt on Cutting Edge (Order From Ship Direct Only), Incl 1 - 9

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
