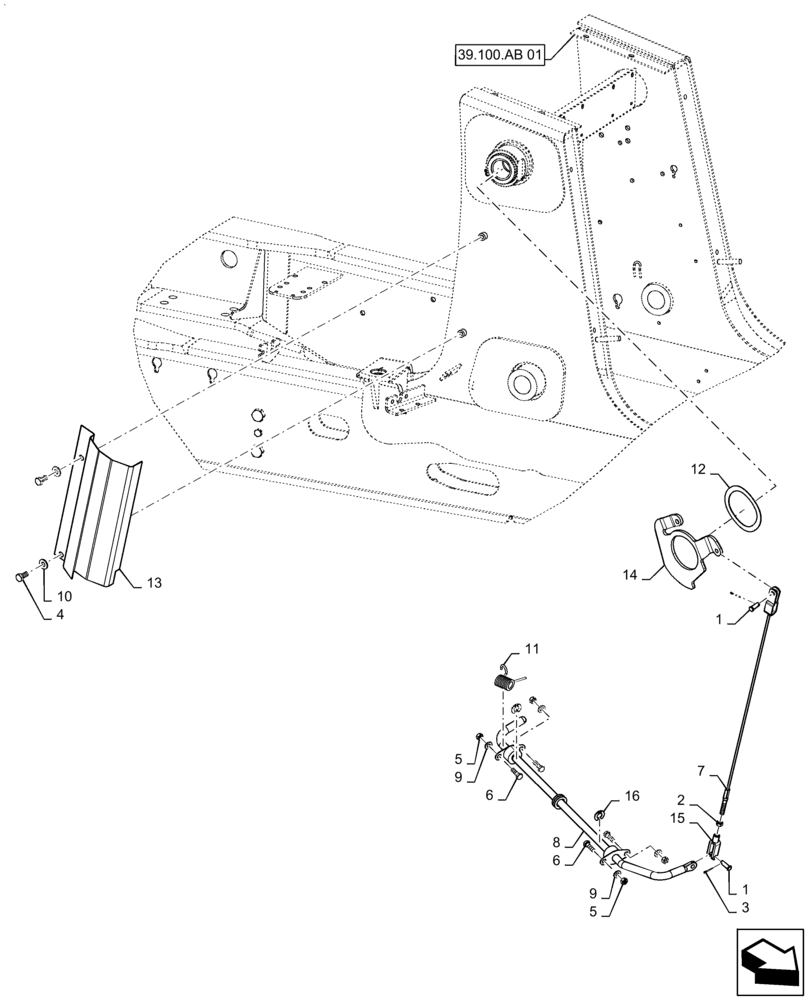

Запчасти Case 570N EP (82.100.AF[02]) - ANTI-ROLL BACK LINKAGE (82) - FRONT LOADER & BUCKET

1

D149287

PIN,7.9mm OD x 26.72mm L

Clevis

2шт.

2

425-115

NUT,5/16"-24, G5

1шт.

3

432-612

COTTER PIN,3/32" x 3/4"

2шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

7

87313378

FLEXIBLE CABLE,663mm L, 8.15mm ID, 5/16" - 24 RH Thd

Bucket Level

1шт.

8

87417601

ROD ASSY.

Bucket Leveling

1шт.

9

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

10

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

11

124721A1

SPRING,Extension, 19mm ID x 61mm L

Coil

1шт.

12

137283A1

WAVE WASHER,85.6mm ID x 109.22mm OD x 1.14mm Thk

Spring

1шт.

13

139865A1

SHIELD

Cable Guard

1шт.

14

142404A1

CAM

Self Leveling

1шт.

15

239406A1

CLEVIS,5/16-24"

1шт.

16

D143591

RING, SNAP,12.7mm ID, Ext

2шт.
