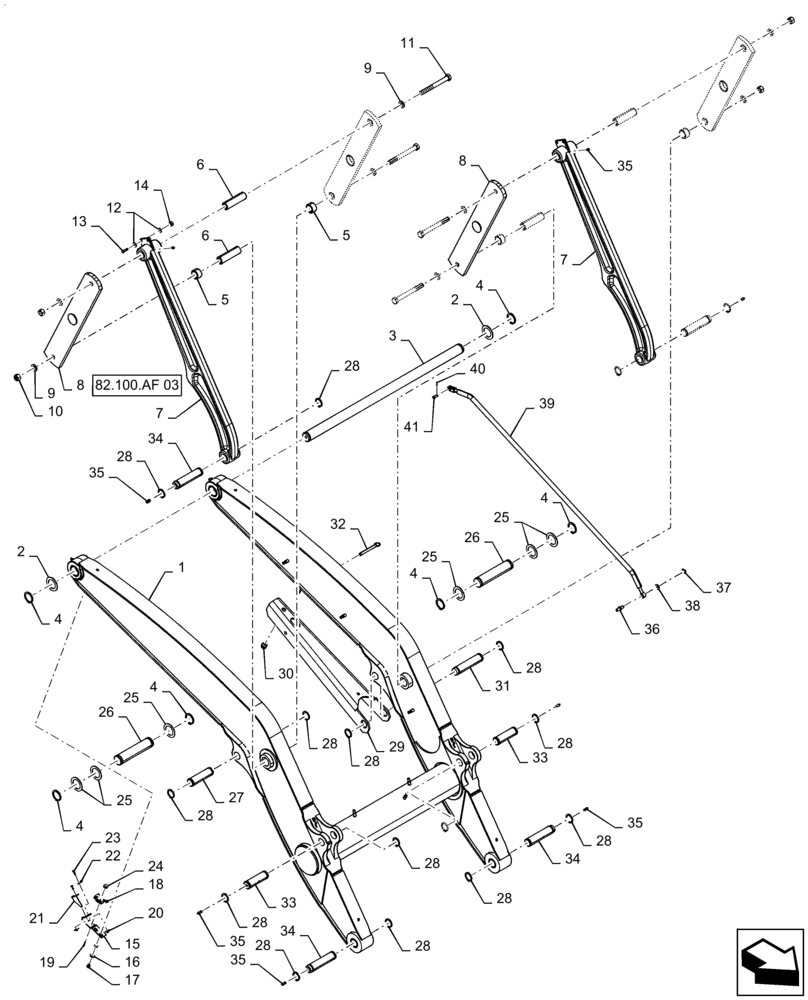

Запчасти Case 570N EP (82.100.AF[01]) - LOADER LIFT FRAME (82) - FRONT LOADER & BUCKET

1

47369268

LOADER ARM

1шт.

2

181842A1

WASHER,50.4mm ID x 76mm OD x 3.6mm Thk

2шт.

3

D145767

SHAFT,1113.4mm L

Cross

1шт.

4

800-44050

SNAP RING,M50, Ext

6шт.

5

100696A1

BUSHING,38.41mm ID x 47.65mm OD x 28.6mm L

4шт.

6

D132076

SPACER,23.75mm ID x 38.07mm OD x 135mm L

4шт.

7

84216090

LINK

Loader Dump

2шт.

8

139180A1

LINK ASSY.

Loader Cylinder

3шт.

9

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

10

829-1420

NUT,M20, Cl 10

4шт.

11

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

13

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

15

128818A1

SUPPORT

Bracket, RTD Switch

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

17

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

2шт.

18

D137363

SWITCH

Limit With Roller

1шт.

19

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

20

833-40406

NUT,M6, U

2шт.

21

142524A1

PROTECTOR

RTD Switch

1шт.

22

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

1шт.

23

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

24

193-1003

NUT,Keps, w/LW,#6-32

2шт.

25

495-81282

WASHER,2 1/16" x 3" x .109"

6шт.

26

335177A1

PIN,50mm OD x 234mm L

Loader Lift Cylinder

2шт.

27

87623771

GROOVED PIN,40mm OD x 150mm L

Loader Lift

1шт.

28

800-44040

SNAP RING,M40, Ext

16шт.

29

341564A2

STRUT

Loader Lift Arm

1шт.

30

344892A1

GROMMET,25.4mm OD, 12.7mm ID, 26mm L

Safety Strut

1шт.

31

118900A1

PIN,40mm OD x 179mm L

Lift Cylinder

1шт.

32

104824A1

PIN,12.7mm OD

Loader Support

1шт.

33

87724438

GROOVED PIN,40mm OD x 138.3mm L

Bucket Cylinder

2шт.

34

84367828

PIN,40mm OD x 180mm L

4шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

8шт.

36

192815A1

PIN,1/2" - 13, 1.85" L

Anti-Roll Back

1шт.

37

103-3350

SNAP RING,#50, .392" Dia, E-Type

1шт.

38

495-11053

WASHER,1/2", SAE

1шт.

39

87712370

ROD

Anti-Roll Back

1шт.

40

87548980

CLEVIS PIN,3/8" x 1"

1шт.

41

432-612

COTTER PIN,3/32" x 3/4"

1шт.
