(55.518.AT[02]) - VAR - 747775 - WINDSHIELD WASH RESERVOIR, ASSY

Запчасти Case 570N EP (55.518.AT[02]) - VAR - 747775 - WINDSHIELD WASH RESERVOIR, ASSY (55) - ELECTRICAL SYSTEMS

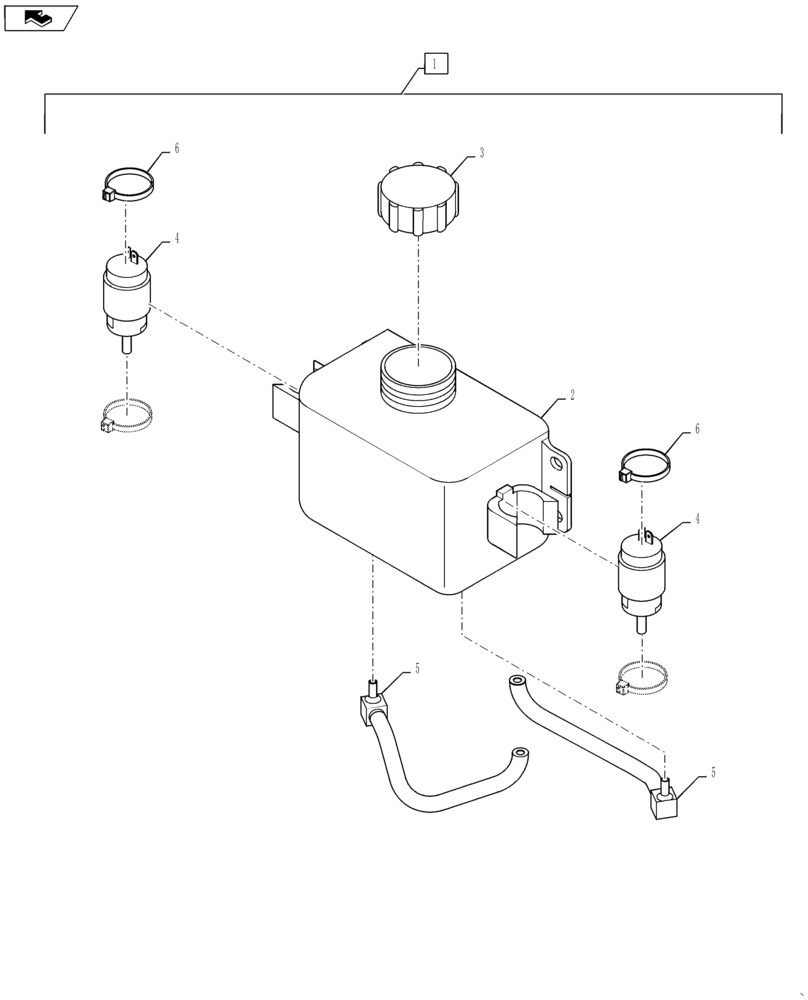

Схема запчастей Case 570N EP - (55.518.AT[02]) - VAR - 747775 - WINDSHIELD WASH RESERVOIR, ASSY (55) - ELECTRICAL SYSTEMS
2
3
6
4
home
4
5
5
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87448685

WINDSHIELD WASHER

Reservoir Assy, Incl 2 - 6

1шт.

2

87449514

RESERVOIR, WINDSHIEL

Tank Only

1шт.

3

9841626

CAP COVER

Washer Bottle

1шт.

4

47626001

PUMP

2шт.

5

87449517

HOSE, BULK

Washer Bottle

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

Black

1шт.
