(55.510.AF[02]) - FRONT, CAB WIRE HARNESS

Запчасти Case 570N EP (55.510.AF[02]) - FRONT, CAB WIRE HARNESS (55) - ELECTRICAL SYSTEMS

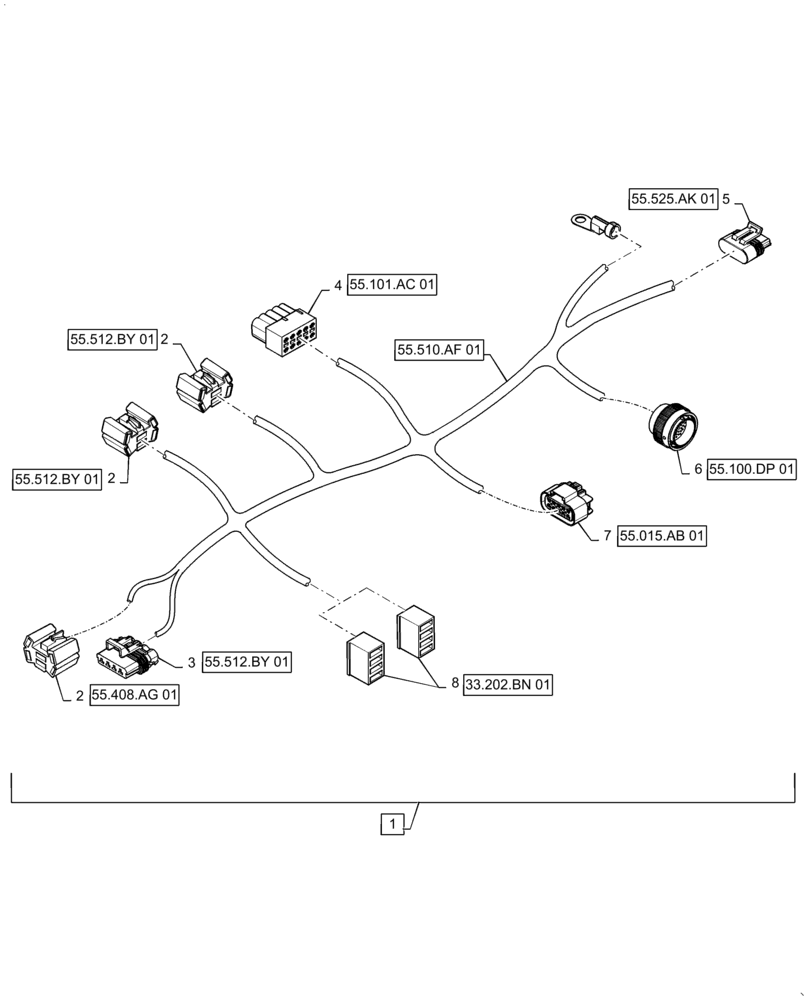

Схема запчастей Case 570N EP - (55.510.AF[02]) - FRONT, CAB WIRE HARNESS (55) - ELECTRICAL SYSTEMS
55.512.by 01
3
55.101.ac 01
8
55.525.ak 01
5
55.512.by 01
55.408.ag 01
55.100.dp 01
2
55.015.ab 01
33.202.bn 01
2
55.512.by 01
1
2
55.510.af 01
7
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84526779

WIRE HARNESS

Front Cab Incl 2 - 8

1шт.

2

87697780

ELEC CONNECTOR,Female, 6 Cavities

6 Cavity Horn Switch

1шт.

2

87697780

ELEC CONNECTOR,Female, 6 Cavities

6 Cavity Turn Signal Switch

1шт.

2

87697780

ELEC CONNECTOR,Female, 6 Cavities

6 Cavity Hazard Light Switch

1шт.

3

87686742

PLUG

4 Cavity FNR Switch

1шт.

4

84159859

ELEC CONNECTOR,Female, 10 Cavities

10 Cavity Comfort Steering Switch

1шт.

5

87689636

PLUG,Red, Taxi Seal Connector Cavity

6 Cavity Foot Throttle

1шт.

6

87713304

ELEC CONNECTOR

12 Cavity Side Harness

1шт.

7

87698252

ELEC CONNECTOR,Female, 10 Cavities

10 Cavity Engine Harness

1шт.

8

47388657

ELEC CONNECTOR

4 Cavity Brake Pedal Switch Incl in 1

1шт.
