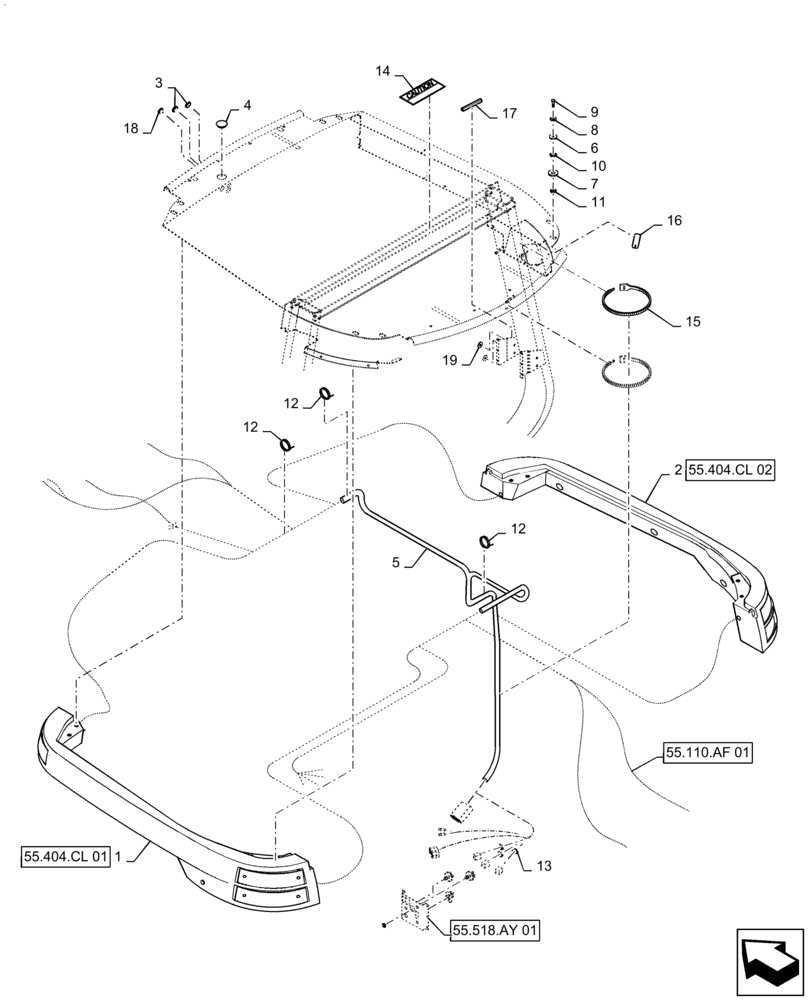

Запчасти Case 570N EP (55.404.CL[03]) - TURN SIGNAL LIGHT MOUNTING, CAB (55) - ELECTRICAL SYSTEMS

1

187834A1

BRACKET

Cab Light, LH

1шт.

2

187836A1

BRACKET

Cab Light, RH

1шт.

3

353-421

PLUG,Dome, .187" hole, Nylon

2шт.

4

86625133

PLUG

Hole, .437"

1шт.

5

131371C1

CONDUIT

Wire Guard

1шт.

6

86625240

WASHER,0.38" ID x 1.12" OD x 0.07" Thk

8шт.

7

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

8

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

8шт.

9

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

8шт.

10

186756A1

SPRING WASHER

Spring

8шт.

11

183598A2

SPACER

Cab Light Pod

8шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

13

473321C1

CABLE TIE,8" OAL x 0.098" W

4шт.

14

112236A1

DECAL

Caution Insulation

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

Black

4шт.

16

193707A1

LARGE PLATE

Retainer

1шт.

17

D36179

LINING

Trim

1шт.

18

86625128

PLUG,Dome, .562" hole, Nylon

1шт.

19

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
