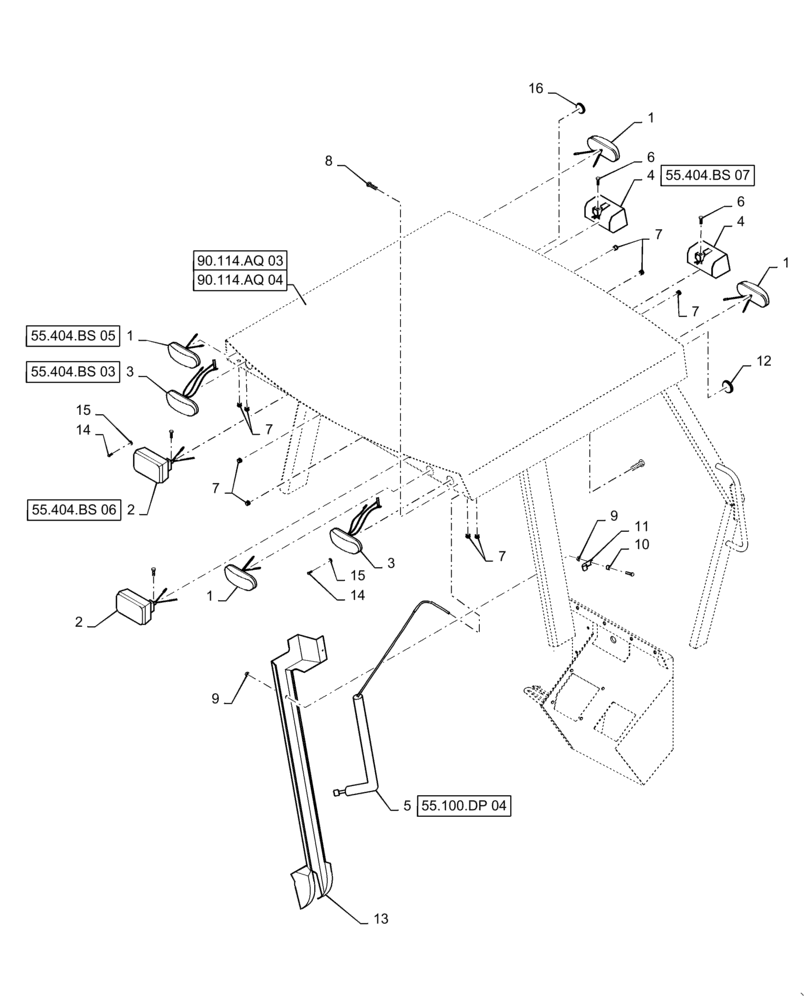

Запчасти Case 570N EP (55.404.BS[02]) - VAR - 747666 - CANOPY, TALL ROPS, LIGHT (55) - ELECTRICAL SYSTEMS

1

D135384

LAMP,12V

Amber Marker

4шт.

2

87584890

LIGHT ASSY.,Halogen, 12V, 55W, Clear

Rear Flood

2шт.

Var 747666

1шт.

2

47682620

WORK LAMP,Flood, LED, 12V

LAMP, WORK, LED

2шт.

3

D121152

LAMP,12V

Red Marker

2шт.

4

84236850

LIGHT,Halogen, 12V, 55W, Clear

Front Driving

2шт.

4

47682629

WORK LAMP

LAMP, WORK, LED

2шт.

4

87584890

LIGHT ASSY.,Halogen, 12V, 55W, Clear

Front Driving

2шт.

Var 747666

1шт.

4

47682620

WORK LAMP,Flood, LED, 12V

LAMP, WORK, LED

2шт.

5

84386679

WIRE HARNESS

Lamps

1шт.

6

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

4шт.

7

353-405

PLUG,Dome, .562" hole, Nylon

6шт.

8

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

1шт.

9

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

10

126907A1

SPACER,10.31 ID x 15.85 OD x 16.7 L

Steel

2шт.

11

D147383

CLIP,5/8" J

J - Clamp

2шт.

12

D93716

PLUG,73.mm ID x 88.9mm OD

3"

4шт.

13

390688A1

COVER

Electrical Harness

1шт.

14

329032A1

SELF-TAP SCREW,Hex WAHR HD TPG #10 x 0.375 END TT

4шт.

15

495-31022

WASHER,#10

4шт.

16

353-417

PLUG,Dome, 2.000" hole, Nylon

10шт.
