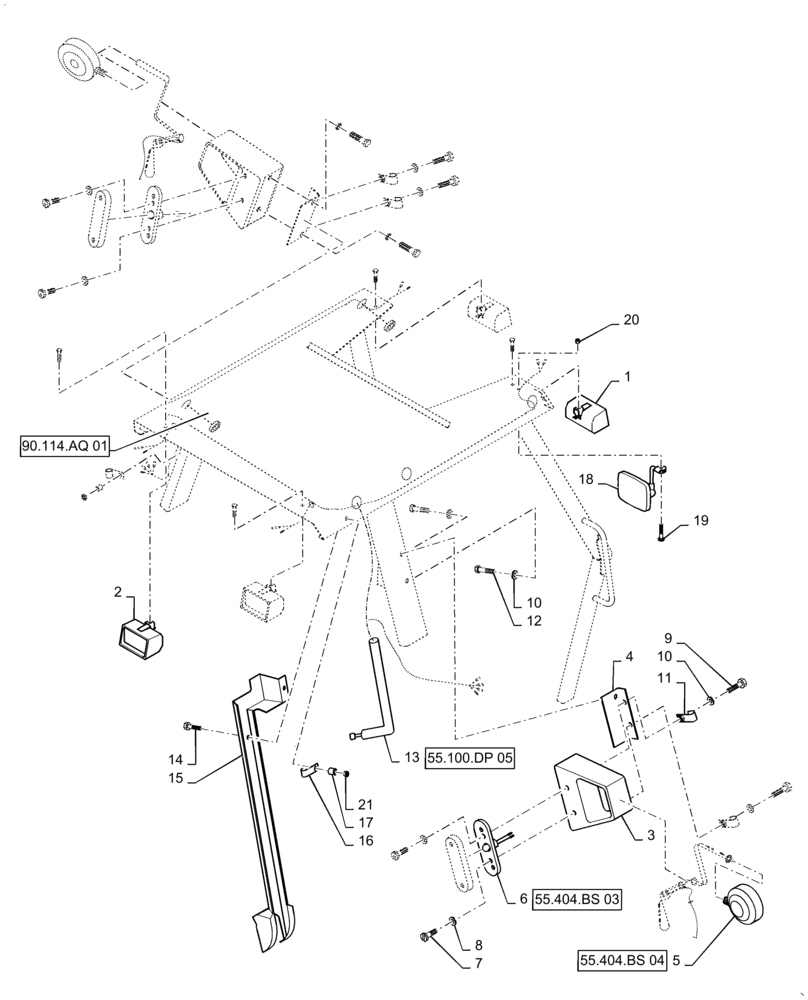

Запчасти Case 570N EP (55.404.BS[01]) - LOW PROFILE CANOPY LIGHTS (55) - ELECTRICAL SYSTEMS

1

84236850

LIGHT,Halogen, 12V, 55W, Clear

Front Driving

2шт.

1

47682629

WORK LAMP

LIGHT, WORK, LED

2шт.

2

87584890

LIGHT ASSY.,Halogen, 12V, 55W, Clear

Flood

2шт.

2

47682620

WORK LAMP,Flood, LED, 12V

LIGHT, WORK, LED

2шт.

2

1312210C2

BULB,Halogen H3, 12V, 55W

1шт.

3

D120124

BRACKET

Light Mounting

2шт.

4

84329382

BRACKET

Light

2шт.

5

D122121

LAMP,12V

Double Face

2шт.

6

D121152

LAMP,12V

Stop And Tail

2шт.

7

187-1917

SELF-TAP SCREW,Pan Hd, #8-16 x 5/8"

4шт.

8

495-21019

WASHER,#8

4шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

10

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

8шт.

11

833-40408

NUT,M8, U

4шт.

12

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

13

84386688

WIRE HARNESS

Lamps

1шт.

14

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

1шт.

15

413057A1

COVER

Electrical Harness

1шт.

16

D147383

CLIP,5/8" J

J-Clamp

2шт.

17

126907A1

SPACER,10.31 ID x 15.85 OD x 16.7 L

Tube

2шт.

18

87665407

REAR VIEW MIRROR

Internal

1шт.

19

13313617

SCREW,Pozidriv Oval Hd, Csk, M6 x 30mm, Cl 5.8, Full Thd

1шт.

20

832-10406

NUT,M6 x 1, Cl 8

1шт.

21

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.
