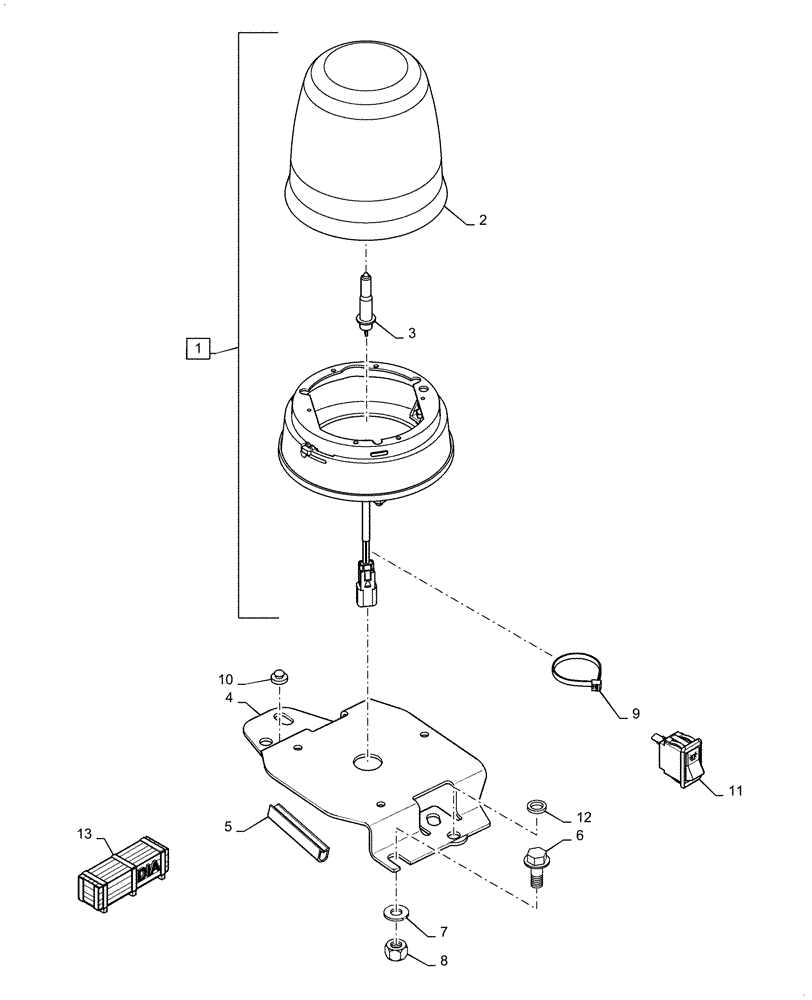

Запчасти Case 570N EP (55.404.AC[01]) - VAR - 728758 - ROTARY BEACON (55) - ELECTRICAL SYSTEMS

1

84337824

BEACON,12V, 55W, Amber

Assembly, Incl 2 - 3

1шт.

2

84344644

LENS

Amber

1шт.

3

86616248

BULB,H1, 12V, 55W

1шт.

4

84521992

BRACKET

Beacon Mounting

1шт.

5

84522327

SOFT TRIM

80mm

1шт.

6

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

7

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

8

412141

NUT,M10 x 1.5, Cl 8

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

10

84523200

BUMPER

Rubber

2шт.

11

133714A1

BEACON SWITCH

Rocker, Beacon

1шт.

12

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

13

84410620

KIT

DIA Kit, Rotating Beacon (Order From Wholegoods Only) Incl 1, 4 - 12

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
