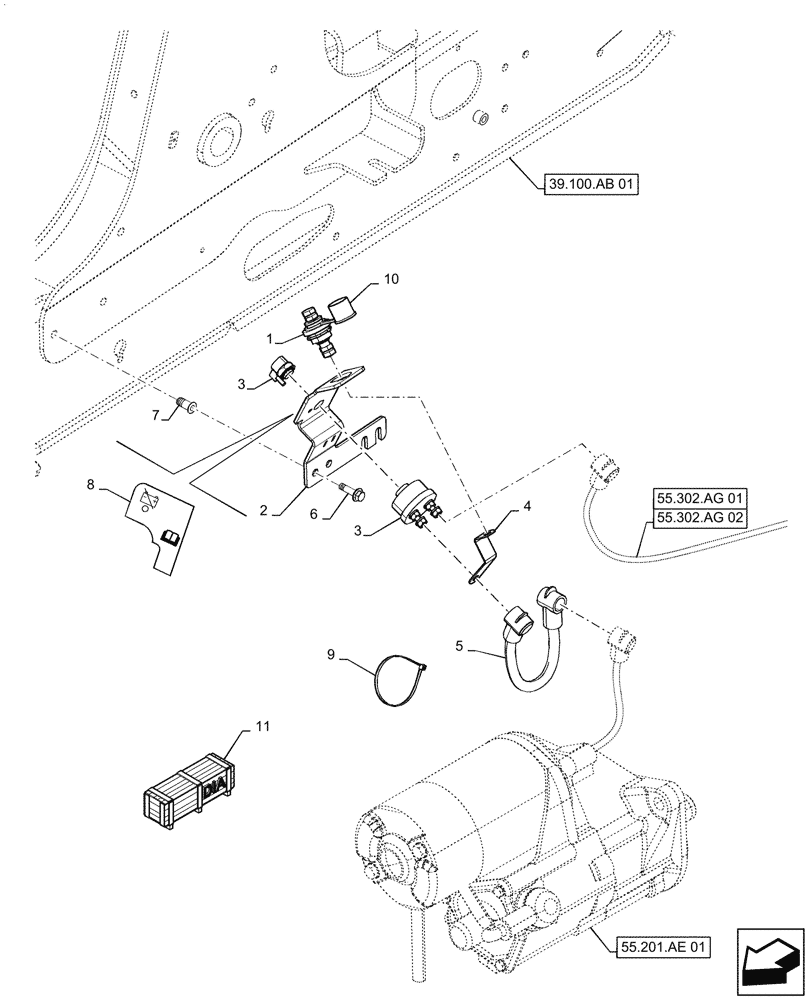

Запчасти Case 570N EP (55.302.AI[02]) - BATTERY DISCONNECT SWITCH (55) - ELECTRICAL SYSTEMS

1

399383A1

TERMINAL CONNECTOR,3/8"-16 UNC

Remote Jump Start, Positive, Incl 10

1шт.

2

84540360

BRACKET

Battery Disconnect

1шт.

3

87409316

SWITCH

Master Disconnect

1шт.

4

84543508

BAR

1шт.

5

84598674

POS BATTERY CABLE

Positive

1шт.

6

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

7

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

2шт.

8

379422A1

DECAL

Master Disconnect

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

10

48016448

BOOT

1шт.

11

47419445

CONSTRUCTION DIA

DIA Kit, Remote Jump Start (Order from Wholegoods Only) Incl 1 - 10

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
