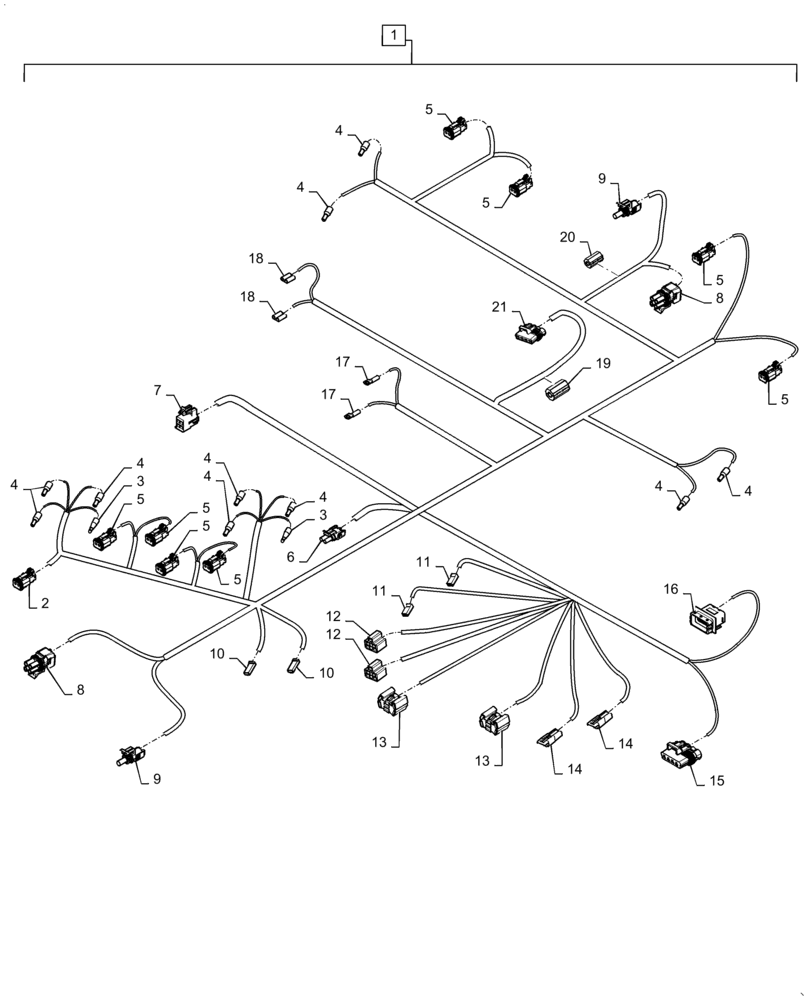

Запчасти Case 570N EP (55.110.AF[01]) - VAR 747853 - CAB WIRE HARNESS WITH A/C (55) - ELECTRICAL SYSTEMS

1

47406435

WIRE HARNESS

Cab With A/C, Incl 2 - 21

1шт.

2

84277534

ELEC CONNECTOR

Rotating Beacon, 2 Way Receptacle, X-527

1шт.

2

84277220

LOCKING TAB,Wedge Lock

X-527

1шт.

2

84277237

TERMINAL

X-527

2шт.

3

84120008

TERMINAL CONNECTOR,Female, 1 Cavity

Rear Left Turn Signal Ground, 1 Way Pin, X-526

1шт.

3

84120008

TERMINAL CONNECTOR,Female, 1 Cavity

Rear right Turn signal Ground, X-521

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

Brake Light, 1 Way Pin, X-524

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

Tail, X-528

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

Right Turn, X-525

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

Brake, X-523

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

Tail, X-522

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

Right Turn, X-520

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

Left Turn/Warning Lights, X-196

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

Left Turn/Warning Lights, X-198

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

Right Turn/Warning Lights, X-201

1шт.

4

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

Right Turn/Warning Lights, X-197

1шт.

5

84277193

ELEC CONNECTOR

Rear Brake Light, 2 Way Receptacle, X-512

1шт.

5

84277220

LOCKING TAB,Wedge Lock

X-512

1шт.

5

84277237

TERMINAL

X-512

2шт.

5

84277193

ELEC CONNECTOR

Rear Work Lights Ground, X-513

1шт.

5

84277220

LOCKING TAB,Wedge Lock

X-513

1шт.

5

84277237

TERMINAL

X-513

2шт.

5

84277193

ELEC CONNECTOR

Rear Work Lights Ground, X-514

1шт.

5

84277220

LOCKING TAB,Wedge Lock

X-514

1шт.

5

84277237

TERMINAL

X-514

2шт.

5

84277193

ELEC CONNECTOR

Right Rear Work Light, X-515

1шт.

5

84277220

LOCKING TAB,Wedge Lock

X-515

1шт.

5

84277237

TERMINAL

X-515

2шт.

5

84277193

ELEC CONNECTOR

Left Front Work Light, X-192

1шт.

5

84277220

LOCKING TAB,Wedge Lock

X-192

1шт.

5

84277237

TERMINAL

X-192

2шт.

5

84277193

ELEC CONNECTOR

Left Front Work Light, X-194

1шт.

5

84277220

LOCKING TAB,Wedge Lock

X-194

1шт.

5

84277237

TERMINAL

X-194

2шт.

5

84277193

ELEC CONNECTOR

Right Front Driving Light, X-193

1шт.

5

84277220

LOCKING TAB,Wedge Lock

X-193

1шт.

5

84277237

TERMINAL

X-193

2шт.

5

84277193

ELEC CONNECTOR

Left Front Work Light, X-195

1шт.

5

84277220

LOCKING TAB,Wedge Lock

X-195

1шт.

5

84277237

TERMINAL

X-195

2шт.

6

87692855

CONTACT HOUSING,Male, 2 Cavities

A/C Low Pressure Switch signal, A/C Compressor Output, 2 Way Weather Pack, X-103

1шт.

6

87692856

CABLE TERMINAL

X-103

2шт.

7

87697719

ELEC CONNECTOR

Right speaker, 4 Way Receptacle, X-102

1шт.

7

87705092

LOCK

X-102

1шт.

7

87693309

TERMINAL CONNECTOR

X-102

4шт.

8

87692862

ELEC CONNECTOR

Rear Wiper Motor, 4 Way Weather Pack, X-116

1шт.

8

87692856

CABLE TERMINAL

X-116

4шт.

8

87692862

ELEC CONNECTOR

Front Wiper, X-215

1шт.

8

87692856

CABLE TERMINAL

X-215

4шт.

9

87693744

WIRE CONNECTOR

Rear Wiper Motor Ground, 1 Way Weather Pack, X-117

1шт.

9

87692856

CABLE TERMINAL

X-117

1шт.

9

87693744

WIRE CONNECTOR

Front Wiper Motor, X-216

1шт.

9

87692856

CABLE TERMINAL

X-216

1шт.

10

87698658

ELEC CONNECTOR

Rear Wiper Cutout Switch, 1 Way Receptacle, X-111

1шт.

10

87709400

ELEC. TERMINAL PIN

X-111

1шт.

10

87698658

ELEC CONNECTOR

X-129

1шт.

10

87709400

ELEC. TERMINAL PIN

X-129

1шт.

11

87699700

ELEC CONNECTOR

A/C thermostat Switch, 1 Way Receptacle, X-222

1шт.

11

87697619

TERMINAL

X-222

1шт.

11

87699700

ELEC CONNECTOR

A/C thermostat Switch, X-221

1шт.

11

87697619

TERMINAL

X-221

1шт.

12

87713932

ELEC CONNECTOR

Blower Switch, 5 Way Tab, X-022

1шт.

12

87679990

TERMINAL,Tin, 0.75 - 2.50mm

X-022

5шт.

12

87713932

ELEC CONNECTOR

Front Wiper Switch, X-038

1шт.

12

87679990

TERMINAL,Tin, 0.75 - 2.50mm

X-038

5шт.

13

87697780

ELEC CONNECTOR,Female, 6 Cavities

Rear Wiper Switch, 6 Way Receptacle, X-143

1шт.

13

87680657

TERMINAL

X-143

4шт.

13

87697780

ELEC CONNECTOR,Female, 6 Cavities

Windshield Washer Switch, X-037

1шт.

13

87680657

TERMINAL

X-037

3шт.

14

87693717

ELEC CONNECTOR

A/C Indicator Light, 1 Way Tab, X-224

1шт.

14

87693724

TERMINAL CONNECTOR,Tin, 1.00 - 2.00mm

X-224

1шт.

14

87693717

ELEC CONNECTOR

A/C Indicator Light, X-225

1шт.

14

87693724

TERMINAL CONNECTOR,Tin, 1.00 - 2.00mm

X-225

1шт.

15

87697724

ELEC CONNECTOR,Female, 4 Cavities

Speakers, 4 Way Receptacle, X-100

1шт.

15

87689643

CLIP,4.8mm ID

X-100

1шт.

15

87688852

ELEC. TERMINAL PIN

X-100

4шт.

16

87714265

ELEC CONNECTOR

Front Driving Light, 24 Way Tab, X-101

1шт.

16

84128189

PLUG

X-101

3шт.

16

87714290

CABLE TERMINAL

X-101

2шт.

16

84190314

CABLE TERMINAL

X-101

5шт.

16

87708545

CABLE TERMINAL

X-101

14шт.

17

NSS

NOT SOLD SEPARAT

M10 Ground Ring Terminal, X-491, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

M10 Ground Ring Terminal, X-490, Incl in 1

1шт.

18

87694682

ELEC CONNECTOR

Dome Light, 1 Way Receptacle, X-110

1шт.

18

87694684

ELEC CONNECTOR

X-110

1шт.

18

87694682

ELEC CONNECTOR

X-108

1шт.

18

87694684

ELEC CONNECTOR

X-108

1шт.

19

84543630

ELEC CONNECTOR

Ferrite Material, Type 46

1шт.

20

84543629

ELEC CONNECTOR

Ferrite Material, Type 31

1шт.

21

87697720

ELEC CONNECTOR

Blower Motor, 4 Way Receptacle, X-104

1шт.

21

87704929

LOCK

X-104

1шт.

21

87680656

CONTACT

X-104

3шт.

21

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

X-104

1шт.
