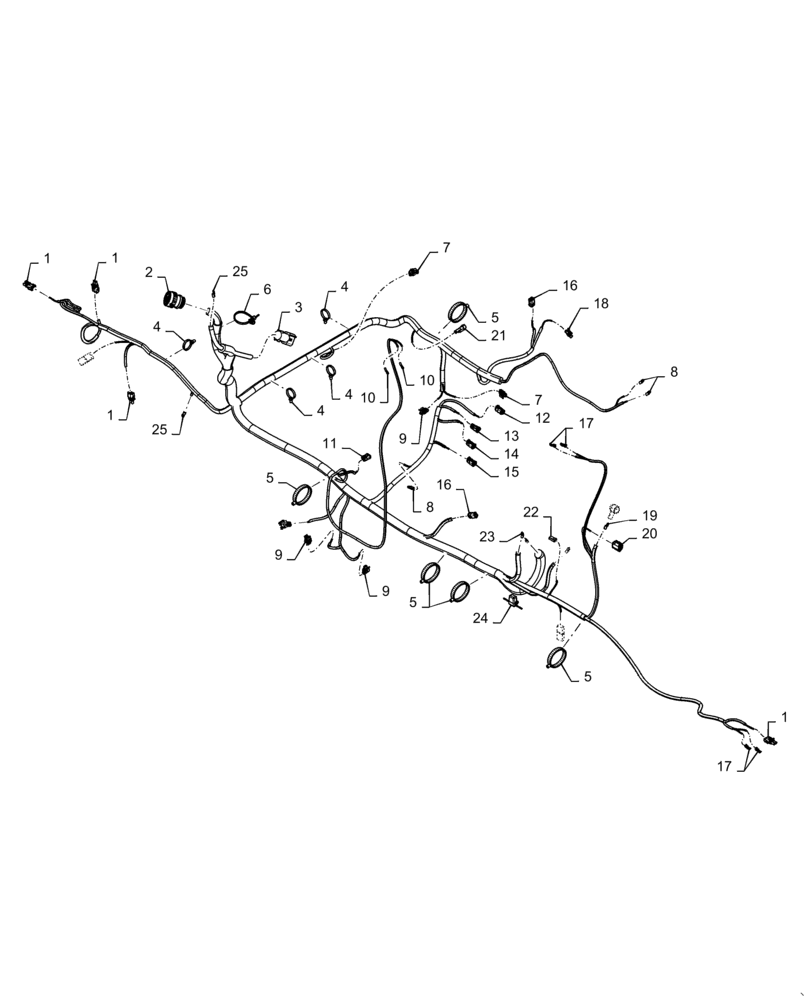

Запчасти Case 570N EP (55.101.AC[01]) - CHASSIS HARNESS (55) - ELECTRICAL SYSTEMS

47512855

WIRE HARNESS

Assembly, Incl 1 - 25

1шт.

1

87692855

CONTACT HOUSING,Male, 2 Cavities

Back Up Alarm, X - 055

1шт.

1

87692855

CONTACT HOUSING,Male, 2 Cavities

3 Point Hitch, X - 006

1шт.

1

87692855

CONTACT HOUSING,Male, 2 Cavities

3 Point Hitch Lock, X - 007

1шт.

1

87692855

CONTACT HOUSING,Male, 2 Cavities

A/C High Pressure Switch, X - 086

1шт.

2

87713304

ELEC CONNECTOR

Main Harness, X - 001

1шт.

3

47761027

ELEC CONNECTOR

1 way Black Power Pack 2000 Sealed Male Connector, X - 122

1шт.

3

84423687

RUBBER SEAL

Purple Single Cable Seal

1шт.

3

47761022

TERMINAL

Power Pack 2000 terminal Male Unsealed Silver Plating Terminal

1шт.

3

84423683

STOP

Secondary Lock TPA Power Pack Gray MD

1шт.

4

87668737

CABLE TIE,203.2mm L, Nylon, Black

Tree Clip, 200mm

5шт.

5

84292402

CABLE TIE,203mm L

5шт.

6

84536921

CABLE TIE,203.2mm L

Tree Clip, 203mm

1шт.

7

87693821

ELEC CONNECTOR,Female, 2 Cavities

Loader Quick Coupler, X - 060

1шт.

7

87693821

ELEC CONNECTOR,Female, 2 Cavities

Comfort Steer, X - 058

1шт.

8

84159852

TERMINAL,#10 Ring, SAE 18 - 20

Trans Temp Sender, X - 071

1шт.

8

84159852

TERMINAL,#10 Ring, SAE 18 - 20

Fuel Level Sender, X - 063

1шт.

8

84159852

TERMINAL,#10 Ring, SAE 18 - 20

Fuel Level Sender, X - 064

1шт.

9

87691549

ELEC CONNECTOR

Load Sense, X - 061

1шт.

9

87691549

ELEC CONNECTOR

Ride Control Tank Sol, X - 052

1шт.

9

87691549

ELEC CONNECTOR

Ride Control Accum. Sol, X - 056

1шт.

10

84159851

TERMINAL

RTD Limit, X - 074

1шт.

10

84159851

TERMINAL

RTD Sw, X - 075

1шт.

11

87695582

ELEC CONNECTOR,Female, 2 Pole

RTD Sol, X - 053

1шт.

12

84277533

ELEC CONNECTOR,Fem, 2 Cavities/Pins

Forward, X - 079

1шт.

13

84277534

ELEC CONNECTOR

Reverse, X - 080

1шт.

14

84277535

ELEC CONNECTOR,Female, 2 Cavities

Diff Lock, X - 077

1шт.

15

84277532

ELEC CONNECTOR

4WD, X - 078

1шт.

16

84277193

ELEC CONNECTOR

Comfort Steer Trans, X - 076

1шт.

16

84277193

ELEC CONNECTOR

SAHR Brake Sol, X - 057

1шт.

17

84177908

TERMINAL

X-066

1шт.

17

84177908

TERMINAL

X-067

1шт.

17

84177908

TERMINAL

Horn, X-031

1шт.

17

84177908

TERMINAL

Horn, X-032

1шт.

18

87687239

CONTACT HOUSING,Female, 1 Pole

Brake Pressure Switch, X-099

1шт.

19

87710106

TERMINAL CONNECTOR

X-481

1шт.

19

87710106

TERMINAL CONNECTOR

1шт.

20

84165069

ELEC CONNECTOR

X-083

1шт.

21

87679525

ELEC CONNECTOR,Female, 1 Cavity

Hyd Filter, X-220

1шт.

22

87691967

ELEC CONNECTOR

Starter, X-820

1шт.

23

84138833

TERMINAL

Starter/Battery Power, X-478

1шт.

24

87635519

FUSE HOLDER

X-538

1шт.

25

84138833

TERMINAL

M10 Ring Terminal

2шт.
