Запчасти Case 570N EP (55.100.DP[01]) - SIDE CONSOLE HARNESS (55) - ELECTRICAL SYSTEMS

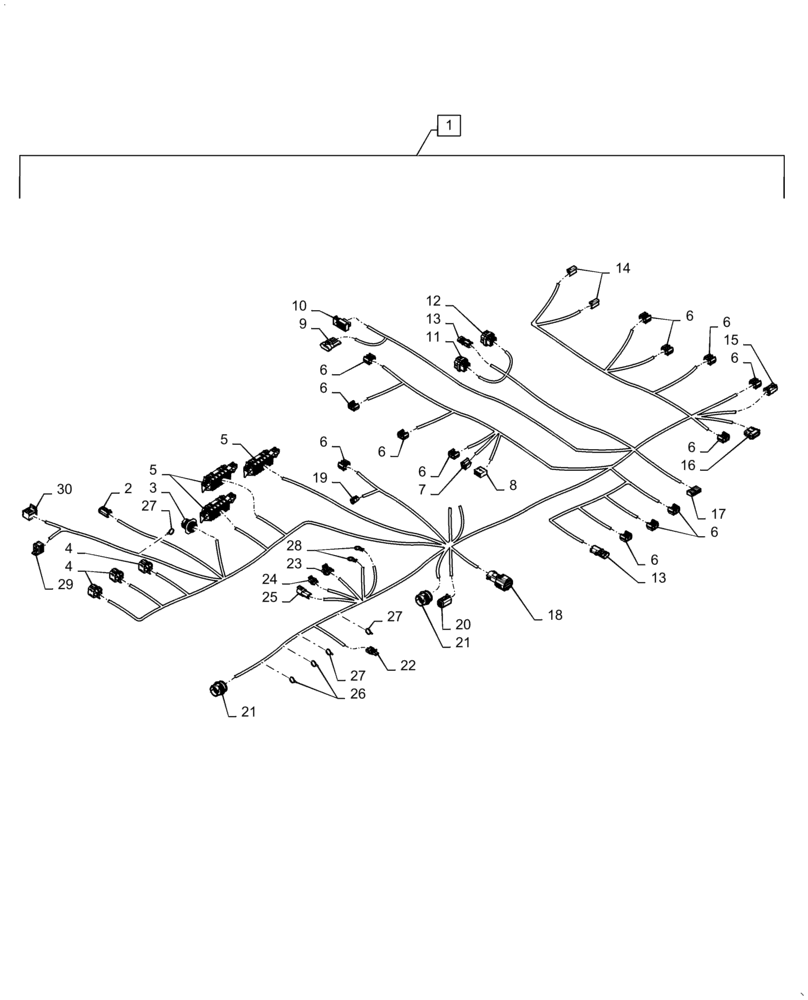

Схема запчастей Case 570N EP - (55.100.DP[01]) - SIDE CONSOLE HARNESS (55) - ELECTRICAL SYSTEMS
8
7
24
14
17
6
6
6
29
25
10
2
13
6
28
6
27
6
20
21
16
9
27
23
12
1
6
27
15
6
6
5
5
22
6
26
30
21
6
11
13
4
18
4
19
3

Артикул

Название

Примечание

Количество

1

47512857

WIRE HARNESS

Side Console Harness, Incl 2 - 30

1шт.

1

47512858

WIRE HARNESS

Side Console Harness, Incl 2 - 30

1шт.

2

87694101

ELEC CONNECTOR,Female, 4 Cavities

Telematics Diagnostic, 4 Way Recptacle, X - 499

1шт.

2

84068583

PLUG,12 - 16 Ga, White

X - 499

1шт.

2

87694148

ELEC CONNECTOR

X - 499

1шт.

2

84391166

WIRE CONNECTOR,Male, 4 Pins

X - 499

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X - 499

1шт.

3

87736919

CONTACT HOUSING,Female, 9 Pole

Main Diagnostic, 9 Way Receptacle, X - 009

1шт.

3

87737472

JAM NUT,Hex, M35 x 1

X - 009

1шт.

3

87737474

LID

X - 009

1шт.

3

84068583

PLUG,12 - 16 Ga, White

X - 009

4шт.

4

84471904

HOLDER

Power Relay 1, 4 Way Receptacle, X - 016

1шт.

4

84471904

HOLDER

Power Relay 2, 4 Way Receptacle, X - 017

1шт.

4

84471904

HOLDER

Power Relay 3, 4 Way Receptacle, X - 018

1шт.

4

84301901

TERMINAL

20 GA

2шт.

4

84301909

8 GA

TERMINAL

2шт.

5

84380518

FUSE BOX

Fuse Block, 48 Way Recptacle, X - 012

1шт.

5

84342278

CONNECTING BLOCK

X - 012

6шт.

5

87686742

PLUG

X - 012

4шт.

5

84380518

FUSE BOX

X - 013

1шт.

5

84342278

CONNECTING BLOCK

X - 013

6шт.

5

87686742

PLUG

X - 013

6шт.

5

48079529

SEAL

Blue, X - 013

1шт.

5

84380518

FUSE BOX

X - 014

1шт.

5

84342278

CONNECTING BLOCK

X - 014

6шт.

5

87686742

PLUG

X - 014

16шт.

5

48079529

SEAL

Blue, X - 014

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Differencial Lock Switch, 6 Way Receptacle, X - 187

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Front Work Lights Switch, X - 137

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Driving Lights Switch, X - 138

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

4WD Switch, X - 023

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Ride Control Switch, X - 024

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Up/Down Switch, X - 027

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Enter/ESC Switch, X - 026

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Rear Worklights, X - 112

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

3 Point Hitch, X - 147

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

PTO Switch, X - 231

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Rotating Beacon, X - 118

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Dome Light, X - 120

1шт.

6

87697780

ELEC CONNECTOR,Female, 6 Cavities

Loader Coupler, X - 145

1шт.

7

87693713

ELEC CONNECTOR,Female, 6 Cavities

Ignition Switch, 6 Way Receptacle, X - 021

1шт.

8

84159859

ELEC CONNECTOR,Female, 10 Cavities

SAHR Brake Switch, 10 Way Receptacle, X - 098

1шт.

9

87697723

ELEC CONNECTOR,Male, 4 Cavities

Radio Speakers, 4 Way Receptacle, X - 105

1шт.

9

87689643

CLIP,4.8mm ID

X - 105

1шт.

10

87699386

MULTIPOLE CONNECTOR,Female, 24 Pole

to Cab Harness, 24 Way Receptacle, X - 020

1шт.

10

87714248

LOCKING TAB,Wedge Lock

X - 020

1шт.

10

84128189

PLUG

X - 020

3шт.

11

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

Instrument Cluster, 26 Way Receptacle, X - 028

1шт.

11

82017049

PLUG

X - 028

8шт.

12

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

Instrument Cluster, 26 Way Receptacle, X - 029

1шт.

12

82017049

PLUG

X - 029

11шт.

13

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Audible Alarm, 2 Way Receptacle, X - 030

1шт.

14

87697531

ELEC CONNECTOR,Female, 2 Cavities

Power Socket, 2 Way Receptacle, X - 182

1шт.

14

87697531

ELEC CONNECTOR,Female, 2 Cavities

Power Socket, 2 Way Receptacle, X - 181

1шт.

15

87711966

PLUG

PTO Diode, 2 Way Receptacle, X - 149

1шт.

15

87712180

ELEC CONNECTOR

X - 149

1шт.

15

84535086

DIODE

PTO, X - 149

1шт.

16

87700156

CONTACT HOUSING,Female, 12 Pole

Telematics Module, X - 498

1шт.

16

84807680

PLUG

X - 498

1шт.

16

87705198

WEDGE

X - 498

1шт.

16

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X - 498

1шт.

16

87700155

ELEC CONNECTOR,Female, 12 Cavities

X - 498

1шт.

17

84164979

ELEC CONNECTOR

Radio, 13 Way Receptacle, X - 109

1шт.

18

84364890

ELEC CONNECTOR

Battery Power, 1 Way Receptacle, X - 123

1шт.

18

84423683

STOP

X - 123

1шт.

19

84277203

ELEC CONNECTOR

Hand Throttle, 3 Way Receptacle, X - 033

1шт.

19

84277224

LOCKING TAB,Wedge Lock

X - 033

1шт.

20

47416268

WIRE CONNECTOR

PTO Option to Jumper, 6 Way Receptacle, X - 084

1шт.

20

87694149

ELEC CONNECTOR

X - 084

1шт.

20

84068583

PLUG,12 - 16 Ga, White

X - 084

6шт.

21

84365917

ELEC CONNECTOR

To Front, 47 Way, X - 150

1шт.

21

87271930

NUT

X - 150

1шт.

21

84365917

ELEC CONNECTOR

X - 150

1шт.

21

87271930

NUT

X - 150

1шт.

21

84365916

WIRE CONNECTOR

X - 150

1шт.

21

84807680

PLUG

X - 150

1шт.

22

87692855

CONTACT HOUSING,Male, 2 Cavities

De-Clutch, 2 Way, X - 008

1шт.

23

87697724

ELEC CONNECTOR,Female, 4 Cavities

Loader Control, 4 Way Receptacle, X - 002

1шт.

23

87689643

CLIP,4.8mm ID

X - 002

2шт.

24

87693821

ELEC CONNECTOR,Female, 2 Cavities

EH Clam, 2 Way Receptacle, X - 039

1шт.

24

87705073

STOP LOCK

X - 039

1шт.

25

84277204

ELEC CONNECTOR

To Washer Bottle, 3 Way Receptacle, X - 130

1шт.

25

84277225

WIRE CONNECTOR

X - 130

1шт.

26

84536921

CABLE TIE,203.2mm L

Cable Tie With Fir Tree

2шт.

27

87668737

CABLE TIE,203.2mm L, Nylon, Black

Cable Tie With Fir Tree

3шт.

28

87486319

TERMINAL

M10 Ring Terminal

1шт.

29

245731C1

CONNECTOR, ELEC

Timer/Holder, 9 Way Receptacle, X - 148

1шт.

30

194977A1

CONNECTOR, ELEC

Flasher/Holder, 9 Way Receptacle, X - 010

1шт.

Выбрано товаров: 88
