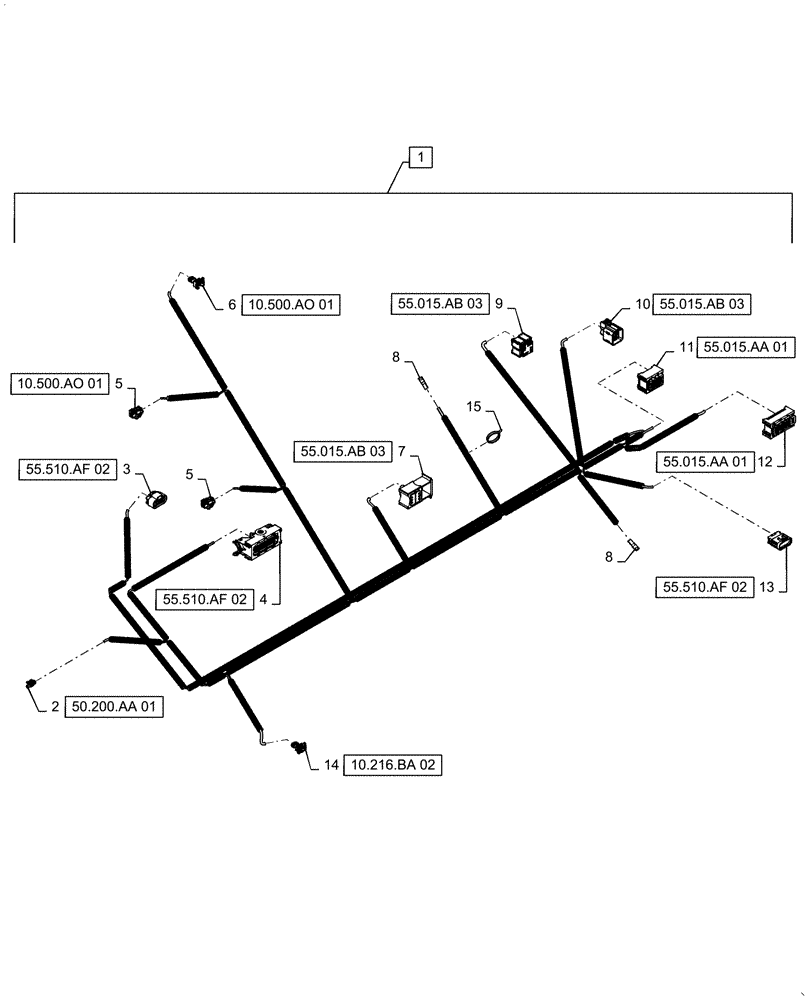

Запчасти Case 570N EP (55.015.AB[04]) - ENGINE WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

47714181

WIRE HARNESS

Assembly, Engine, Incl 2 - 15

1шт.

2

87687239

CONTACT HOUSING,Female, 1 Pole

A/C Clutch, X - 473

1шт.

3

87698252

ELEC CONNECTOR,Female, 10 Cavities

10 Way Receptacle, Electric Valve, X - 471

1шт.

3

87694140

ELEC CONNECTOR

X - 471

2шт.

4

84154706

ELEC CONNECTOR,Female, 62 Cavities

62 Way Receptacle, Engine Interface, X - 470

1шт.

4

84154659

WIRE CONNECTOR

Cover, X - 470

1шт.

5

87709793

WIRE CONNECTOR,Female, 2 Cavities

2 Way Receptacle, Gas Temp Sensor 2 (Downstream), X - 477

1шт.

5

87709793

WIRE CONNECTOR,Female, 2 Cavities

Gas Temp Sensor 1 (Upstream), X - 476

1шт.

6

84607243

ELEC CONNECTOR,Female, 2 Cavities

2 Way Receptacle, Air Temp Sensor, X - 474

1шт.

7

84356962

WIRE CONNECTOR,Female, 8 Cavities

8 Way Receptacle, GCU, X - 469

1шт.

8

47663137

TERMINAL

M10 Ring Terminal, X-508, X-510

2шт.

9

84423679

MODULE

8 Way Receptacle, X - 448

1шт.

9

84520004

RETAINER

8 Way Receptacle, X - 448

1шт.

10

84471904

HOLDER

Holder, 4 Way Receptacle, Main Relay, X - 464

1шт.

10

84301901

TERMINAL

X - 464, 20 GA

2шт.

10

84301909

X - 464, 8 GA

TERMINAL

2шт.

11

84474053

ELEC CONNECTOR,Female, 60 Cavities

60 Way Receptacle, ECU, X - 462

1шт.

11

84474054

WIRE CONNECTOR

X - 462

1шт.

11

84474554

ELEC CONNECTOR

X - 462

1шт.

11

84474556

RETAINER

X - 462

1шт.

12

84474047

ELEC CONNECTOR,Female, 94 Cavities

94 Way Receptacle, ECU, X - 461

1шт.

12

84474050

ELEC CONNECTOR

X - 461

1шт.

12

84474552

ELEC CONNECTOR

X - 461

1шт.

12

84474553

WIRE CONNECTOR

X - 461

1шт.

12

84474555

RETAINER

X - 461

1шт.

13

87698254

ELEC CONNECTOR

10 Way Receptacle, X - 496

1шт.

13

87694140

ELEC CONNECTOR

X - 496

1шт.

13

87745379

PLUG

X - 496

5шт.

14

87709663

ELEC CONNECTOR,Female, 3 Cavities

3 Way Receptacle, Water In Fuel Switch, X - 463

1шт.

15

84177914

FUSE HOLDER

In Line Fuse Holder 60A, GCU, X - 466

1шт.
