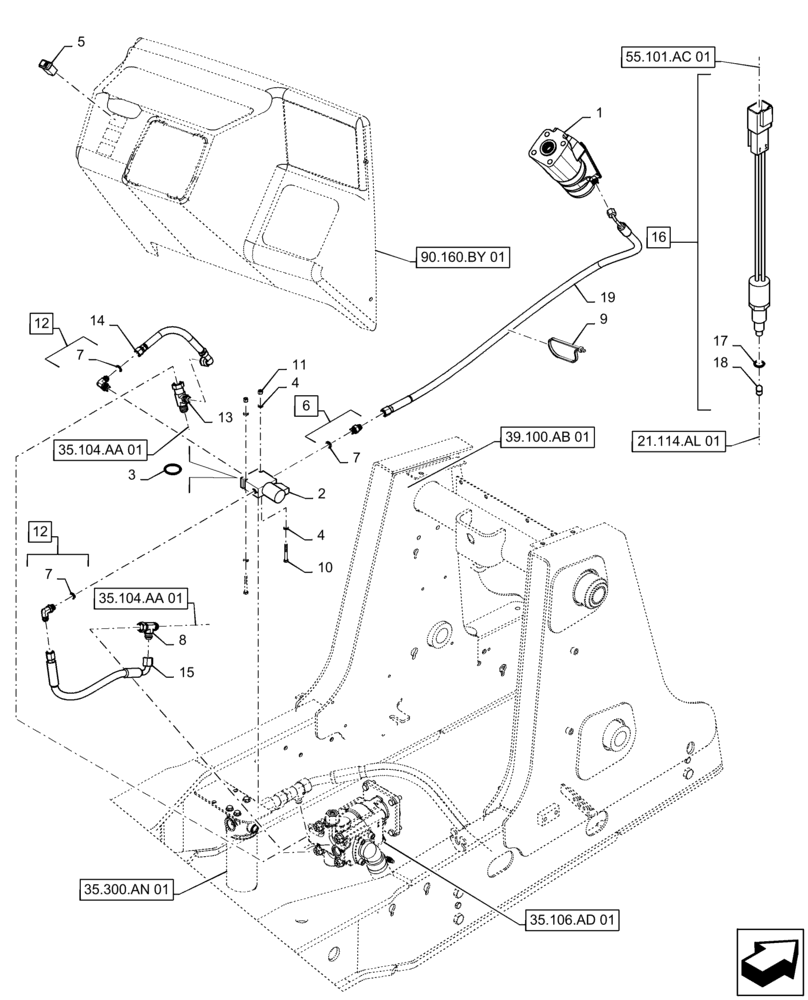

Запчасти Case 570N EP (41.910.AA[01]) - VAR - 423011 - COMFORT STEERING, 4WD - W/PARKER PUMP (41) - STEERING

1

84379517

PUMP

Steering, Dual Displacement

1шт.

2

87382811

SOLENOID VALVE

2 Position, 3 Way

1шт.

3

329483A1

SEAL KIT

Services Ref 2

1шт.

4

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

5

87585817

SWITCH

Fast Steer, Comfort

1шт.

6

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 7

1шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 6, 12

1шт.

8

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

10

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

11

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

2шт.

12

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 7

2шт.

13

86632549

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

1шт.

14

47607531

HYDRAULIC HOSE,10mm ID x 290mm L

Fast Steer Return

1шт.

15

47607540

HYDRAULIC HOSE,10mm ID x 440mm L

Fast Steer Pressure

1шт.

16

87578910

SENSOR

Transmission Shift Position, Incl 17 - 18

1шт.

17

87578908

O-RING,0.103" Thk x 0.237" ID, -108, Cl 6, 90 Duro

1шт.

18

NSS

NOT SOLD SEPARAT

Pin, Position Sensor, Incl In 16

1шт.

19

84356649

HOSE ASSY.

Dual Speed Steer Pilot

1шт.
