Запчасти Case 570N EP (41.200.BD[03]) - HYDRAULIC STEERING LINES - SHIMADZU PUMP - START APR 2016 (41) - STEERING

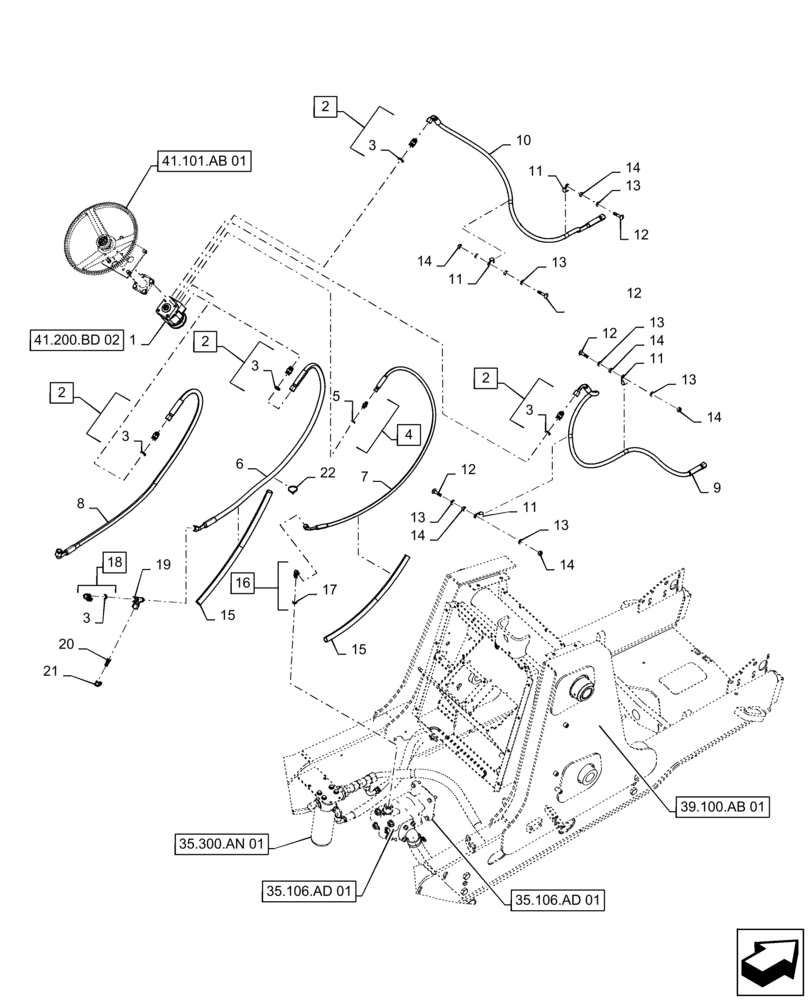

Схема запчастей Case 570N EP - (41.200.BD[03]) - HYDRAULIC STEERING LINES - SHIMADZU PUMP - START APR 2016 (41) - STEERING
22
11
41.200.bd 02
20
14
13
18
16
19
6
8
2
15
13
14
2
14
35.300.an 01
3
5
12
14
41.101.ab 01
1
12
4
12
11
9
3
10
13
14
13
2
7
3
11
15
11
3
35.106.ad 01
17
12
39.100.ab 01
3
14
21
35.106.ad 01
13
13
2

Артикул

Название

Примечание

Количество

1

87751598

STEERING VALVE

Valve, Load Sense, Dynamic Signal

1шт.

See Fig 41.200.BD (02) For Service Parts

1шт.

2

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 3

4шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 2, 18

4шт.

4

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl 5

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Incl in 4

1шт.

6

47394127

HOSE

Steering Pressure

1шт.

7

47394129

HOSE

Steering, Pilot

1шт.

8

47604822

HYDRAULIC HOSE

Steering, Return

1шт.

9

84368621

HYDRAULIC HOSE

LH Steering

1шт.

10

84368895

HYDRAULIC HOSE

RH Steering

1шт.

11

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

12

86512426

CARRIAGE BOLT,Sq Nk, M10 x 50mm, Cl 8.8

4шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

7шт.

14

86500689

NUT,M10 x 1.5, Cl 10

7шт.

15

87452021

PROTECTIVE SLEEVE,19mm ID x 650mm L

Hose

2шт.

16

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 17

1шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 16

1шт.

18

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 3

1шт.

19

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

20

192834A1

COUPLING

Diagnostic Tube

1шт.

21

H434163

DUST CAP

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

Выбрано товаров: 23
